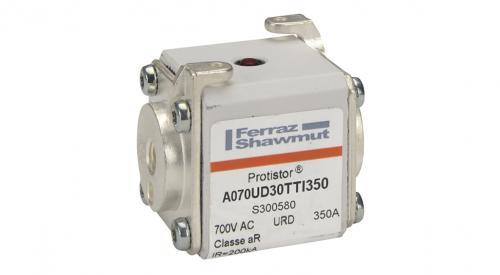

MERSEN FERRAZ S300580 A070UD30TTI350 Fuse, 350A
Get it by Tuesday, Dec 23
€478.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Ampere Rating | 350A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 86 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 30 |
| Height | 48 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 50.6 mm |
| Melting I2t | 15.5 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 57 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 8 |
Product Variants
| Product | Model | Amps | Visual Indication | Mounting | Height | Fuse Size | Ac Voltage | Body Material | Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B300059 | - | - | Bolted | 48 mm | 30 | - | - | - | 3 | €1,700.46 | |
 |
B300128 | - | - | Bolted | 48 mm | 30 | - | - | - | 1 | €421.70 | |
 |
B300404 | - | - | Bolted | 48 mm | 30 | - | - | - | 3 | €1,742.08 | |
 |
C300129 | - | - | Bolted | 48 mm | 30 | - | - | - | 1 | €421.70 | |
 |
C300405 | - | - | Bolted | 48 mm | 30 | - | - | - | 3 | €1,742.08 | |
|
D300130 | - | - | Bolted | 48 mm | 30 | - | - | - | 1 | €421.70 | |
 |
E300108 | - | - | Bolted | 48 mm | 30 | - | - | - | 3 | €1,501.32 |
