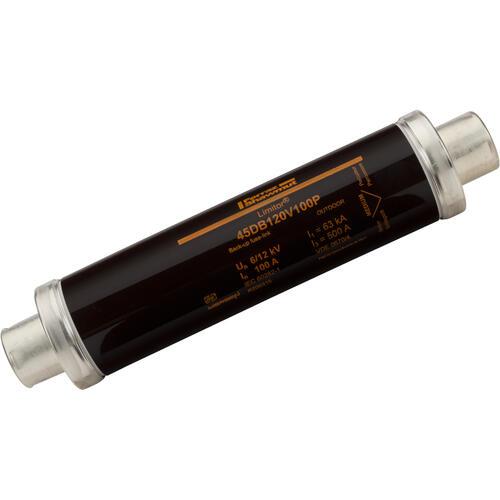

MERSEN FERRAZ R209315 45DB120V100P Fuse, 100A
Get it by Tuesday, Aug 25
€1,045.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 63 kA |
| Ac/dc | AC |
| Amps | 100A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 200 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Cylindrical |
| Design Details | Vde T4 |
| Finish | Silver Plated |
| Fuse Dia. | 78 mm |
| Fuse Length | 292 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 358 mm |
| Min Interrupting Rating (mbc) | 500A |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 156 W |
| Product Group | High Voltage IEC Fuses |
| Rated Voltage Ac Iec | 12 kV |
Shipping Info:
| Ship weight (kg) | 3.08 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 37.01 |
| Ship width (cm) | 7.01 |
Product Variants
| Product | Model | Amps | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Fuse Length | Fuse Dia. | Min Interrupting Rating (mbc) | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A209346 | 50A | 147 W | 45 sq. kA sec. | 24 kV | 442 mm | 56 mm | 205A | Clip | €924.61 | |
 |
B1000570 | 40A | 79 W | 30 sq. kA sec. | 17.5 kV | 367 mm | 56 mm | 125A | Clip | €263.05 | |
|
B209301 | 63A | 60 W | 85 sq. kA sec. | 7.2 kV | 192 mm | 65 mm | 220A | Clip | €757.62 | |
 |
B209347 | 63A | 170 W | 65 sq. kA sec. | 24 kV | 442 mm | 56 mm | 280A | Clip | €980.53 | |
|
C1000571 | 50A | 106 W | 50 sq. kA sec. | 17.5 kV | 367 mm | 56 mm | 205A | Clip | €633.88 | |
|
C209302 | 80A | 85 W | 140 sq. kA sec. | 7.2 kV | 192 mm | 65 mm | 300A | Clip | €848.35 | |
|
C209348 | 80A | 233 W | 100 sq. kA sec. | 24 kV | 442 mm | 65 mm | 360A | Clip | €617.31 |
