MERSEN FERRAZ Limitor P Back-up Fuses

Filter

MERSEN FERRAZ V1000104

A

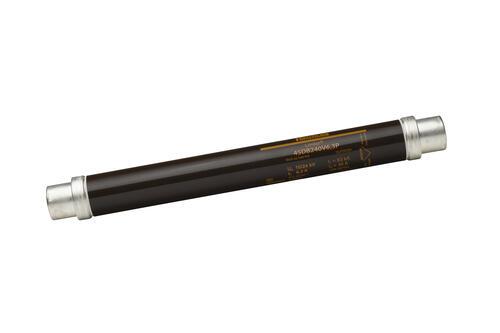

MERSEN FERRAZ S209339

B

MERSEN FERRAZ V209341

C

MERSEN FERRAZ W209342

D

MERSEN FERRAZ X209343

E

MERSEN FERRAZ Y209344

F

MERSEN FERRAZ Z209345

G

MERSEN FERRAZ A209346

H

MERSEN FERRAZ B209347

I

MERSEN FERRAZ R209315

J

MERSEN FERRAZ E1000113

K

MERSEN FERRAZ F1000114

L

Style	Model	Amps	Power Dissipation @ Rated Amps Value	Clearing I2t @ Rated Voltage	Rated Voltage Ac Iec	Fuse Length	Fuse Dia.	Min Interrupting Rating (mbc)	Mounting	Price
A	V1000104	2A	2 W	0.4 sq. kA sec.	12 kV	292 mm	56 mm	16A	Clip	€255.86
A	F209305	6.3A	8 W	0.8 sq. kA sec.	12 kV	292 mm	56 mm	30A	Clip	€587.32
B	S209339	6.3A	13 W	0.75 sq. kA sec.	24 kV	442 mm	56 mm	30A	Clip	€527.12
A	G209306	10A	16 W	1.4 sq. kA sec.	12 kV	292 mm	56 mm	42A	Clip	€590.63
C	V209341	16A	73 W	1.8 sq. kA sec.	24 kV	442 mm	56 mm	60A	Clip	€566.90
D	W209342	20A	76 W	3.5 sq. kA sec.	24 kV	442 mm	56 mm	76A	Clip	€579.63
A	J209308	20A	38 W	3.7 sq. kA sec.	12 kV	292 mm	56 mm	73A	Clip	€602.56
A	K209309	25A	46 W	5.5 sq. kA sec.	12 kV	292 mm	56 mm	93A	Clip	€607.61
E	X209343	25A	89 W	5.2 sq. kA sec.	24 kV	442 mm	56 mm	93A	Clip	€594.12
A	L209310	31.5A	65 W	9 sq. kA sec.	12 kV	292 mm	56 mm	105A	Clip	€647.43
F	Y209344	31.5A	127 W	7 sq. kA sec.	24 kV	442 mm	56 mm	105A	Clip	€647.43
A	M209311	40A	54 W	29 sq. kA sec.	12 kV	292 mm	56 mm	125A	Clip	€664.42
A	B1000570	40A	79 W	30 sq. kA sec.	17.5 kV	367 mm	56 mm	125A	Clip	€263.05
G	Z209345	40A	114 W	22 sq. kA sec.	24 kV	442 mm	56 mm	130A	Clip	€661.03
A	C1000571	50A	106 W	50 sq. kA sec.	17.5 kV	367 mm	56 mm	205A	Clip	€633.88
A	N209312	50A	70 W	40 sq. kA sec.	12 kV	292 mm	56 mm	160A	Clip	€735.58
H	A209346	50A	147 W	45 sq. kA sec.	24 kV	442 mm	56 mm	205A	Clip	€924.61
A	B209301	63A	60 W	85 sq. kA sec.	7.2 kV	192 mm	65 mm	220A	Clip	€757.62
I	B209347	63A	170 W	65 sq. kA sec.	24 kV	442 mm	56 mm	280A	Clip	€980.53
A	P209313	63A	85 W	65 sq. kA sec.	12 kV	292 mm	56 mm	230A	Clip	€824.66
A	C209348	80A	233 W	100 sq. kA sec.	24 kV	442 mm	65 mm	360A	Clip	€617.31
A	C209302	80A	85 W	140 sq. kA sec.	7.2 kV	192 mm	65 mm	300A	Clip	€848.35
A	Q209314	80A	114 W	115 sq. kA sec.	12 kV	292 mm	65 mm	350A	Clip	€874.58
A	D209303	100A	96 W	230 sq. kA sec.	7.2 kV	192 mm	65 mm	350A	Clip	€916.15
J	R209315	100A	156 W	200 sq. kA sec.	12 kV	292 mm	78 mm	500A	Clip	€1,045.73
A	X1000106	125A	117 W	450 sq. kA sec.	12 kV	292 mm	88 mm	480A	Clip	€890.18
K	E1000113	160A	515 W	540 sq. kA sec.	24 kV	442 mm	88 mm	600A	Clip	€732.19
L	F1000114	200A	740 W	800 sq. kA sec.	24 kV	442 mm	88 mm	750A	Clip	€957.66
A	Z1000108	200A	333 W	800 sq. kA sec.	12 kV	292 mm	88 mm	610A	Clip	€1,198.29
