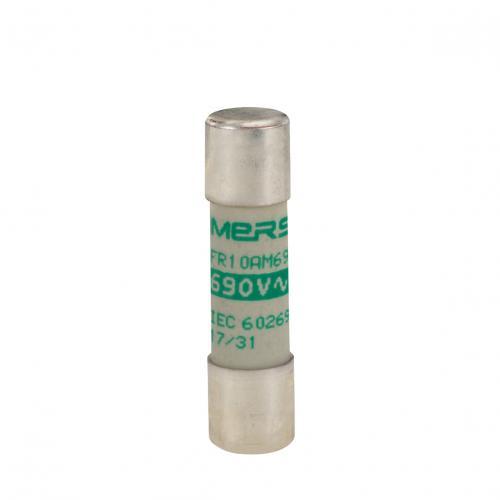

MERSEN FERRAZ P302785 FR10AM69V12 Fuse Link, 12A
Get it by Tuesday, Aug 18
€71.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max. I R Breaking Capacity I1 | 120 kA |
| Ac/dc | AC |
| Amps | 12A |
| Body/insulating Material | Ceramic |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 10.3 mm |
| Finish | Silver Plated |
| Fuse Size | 10" x 38" |
| Length | 38 mm |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 0.78 W |
| Product Group | Low Voltage IEC Fuses |
| Rated Voltage Ac Iec | 690V |
| Rohs Compliant | Yes |
| Speed Characteristic | AM |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.4 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 5.51 |
Product Variants
| Product | Model | Amps | Power Dissipation @ Rated Amps Value | Dia. | Mounting | Connection/terminal Type | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Iec | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H302779 | 1A | 0.1 W | 10.3 mm | Clip | Ferrule | Copper | 120 kA | 690V | 10 | €936.02 | |
 |
J302780 | 2A | 0.14 W | 10.3 mm | Clip | Ferrule | Copper | 120 kA | 690V | 10 | €845.73 | |
 |
K302781 | 4A | 0.28 W | 10.3 mm | Clip | Ferrule | Copper | 120 kA | 690V | 10 | €717.82 | |
 |
L302782 | 6A | 0.38 W | 10.3 mm | Clip | Ferrule | Copper | 120 kA | 690V | 10 | €717.82 | |
 |
M302783 | 8A | 0.55 W | 10.3 mm | Clip | Ferrule | Copper | 120 kA | 690V | 10 | €717.82 |
