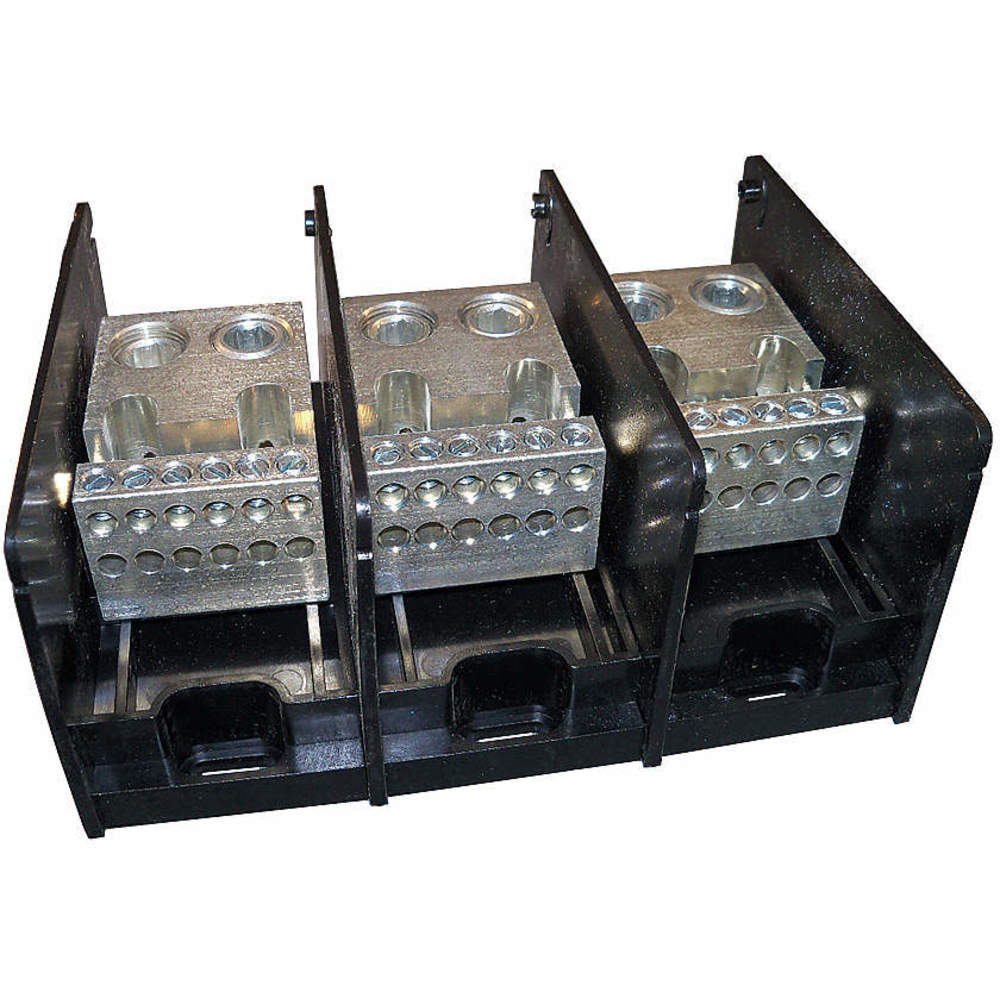

MERSEN FERRAZ MPDB69113 Distribution Block, Standard, 600V, 760A, 1 Pole

Item: AF8ECRModel: MPDB69113Cross Ref: 25CC37

7 In Stock

Ships within 2 days via

~~€286.83~~

5.00% off

€272.49 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Power Distribution Block
Ac Voltage Rating	1000V
Ac/dc	AC/DC
Amps Al	620A
Amps Cu	760A
Body Material	GFPC
Body/insulating Material	Glass Filled Polycarbonate
Connector Material	Aluminum
Connector Material Finish	Tin Plated
Connector Type	Box
Depth	3.55"
Flammability Rating	V-0
For Conductor Material	Aluminum
For Max. Line Wire Size	500 kcmil
For Max. Load Wire Size	4 AWG
For Min. Line Wire Size	4 AWG
For Min. Load Wire Size	14 AWG
Frequency	50/60 Hz
Height	90.2 mm
Housing Color	Black
Installation Mounting	Direct Screw Mount
Length	144.8 mm
Line Connections/pole	2
Line Side Connection Type	Lug
Load Connections/pole	12
Load Side Connection Type	Lug
Max. Amps	760A
Max. Voltage	1000V AC/DC
Mounting Type	Surface Mount
No. Of Poles	3
Overall Depth	3.55"
Overall Length	5.7"
Overall Width	7.89"
Power Distribution Block Design	Open
Primary Hex/screw Size	13/16"-16 x 1.06
Primary Hole Dia.	22/25"
Primary No. Of Openings Per Pole	2
Primary Torque Rating	500-#4 500
Primary Wire Range	#4 AWG to 500 kcmil
Primary Wire Range	4 AWG to 500 MCM
Product Datasheet	mersen-ferraz-mpdbc6263.pdf
Product Group	Power Distribution Blocks
Rated Voltage Ac Ul	1000V
Rated Voltage Dc Ul	1000V
Rohs Compliant	Yes
Secondary Connection/pole	12
Secondary Hex/screw Size	5/16"-24
Secondary Hex/screw Size Thread Length	0.38"
Secondary Hole Dia.	0.27"
Secondary No. Of Openings Per Pole	12
Secondary Torque Rating	#4-#8 40, #10-#14 35
Secondary Wire Range	#4 to #14
Secondary Wire Range (awg)	14 AWG to 4 AWG
Short Circuit Rating Class Cc	100 Ka With 30A Fuse
Short Circuit Rating Class G	100 Ka With 60A Fuse
Short Circuit Rating Class J	100 kA With 600A Fuse
Short Circuit Rating Class L	100 kA With 800A Fuse
Short Circuit Rating Class Rk1	100 kA With 600A Fuse
Short Circuit Rating Class Rk5	100 kA With 600A Fuse
Short Circuit Rating Class T	100 kA With 800A Fuse
Short Circuit Rating Standalone	10 kA
Terminal Material	Aluminum
Voltage	600V AC/DC
Width	200.4 mm

Shipping Info:

Ship weight (kg)	1.45
Ship height (cm)	10.16
Ship length (cm)	33.66
Ship width (cm)	14.45
HS code	8536904000
Country of Origin	MX

Product Details:

Primary Connections/Pole (2)
Power Distribution Block Design (Open)

Documentation:

Datasheet

Product Variants

Model	Height	No. Of Poles	Secondary Wire Range	Connector Material	Product Group	Amps Cu	Short Circuit Rating Class Rk1	Short Circuit Rating Class G	Pkg. Qty.	Price
MPDBC6263	2 mm	1	-	-	Covers	-	-	-	1	€6.47
MPDBC6667	2 mm	1	-	-	Covers	-	-	-	1	€15.91
MPDBC6869	2 mm	1	-	-	Covers	-	-	-	1	€17.68
MPDB63101	71.4 mm	1	#4 to #14	Aluminum	Power Distribution Blocks	85A	100 kA With 60A Fuse	100 Ka With 60A Fuse	1	€11.13
MPDB63131	71.4 mm	1	#4 to #14	Aluminum	Power Distribution Blocks	175A	100 kA With 100A Fuse	100 Ka With 60A Fuse	1	€18.98
MPDB63132	71.4 mm	2	#4 to #14	Aluminum	Power Distribution Blocks	175A	100 kA With 100A Fuse	100 Ka With 60A Fuse	1	€33.19
MPDB63133	71.4 mm	3	#4 to #14	Aluminum	Power Distribution Blocks	175A	100 kA With 100A Fuse	100 Ka With 60A Fuse	1	€39.26
