EATON CH Series Standard Circuit Breakers


Eaton CH Series standard circuit breakers are installed in CH-type loadcenters for preventing electrical damage to connected devices due to excess current or short circuits. They have a plug-on type case for easy installation in loadcentres. These circuit breakers are generally HACR-rated for protecting equipment like receptacles, external motors and HVACs....Read more

Filter
EATON CH360A
EATON CH2100CSB
EATON CH3080STC
EATON CH2125D
EATON CH330E
EATON CH270F
EATON CH3100G
EATON CH320H
EATON CH350I
EATON CH350SWSTJ
EATON CH340K

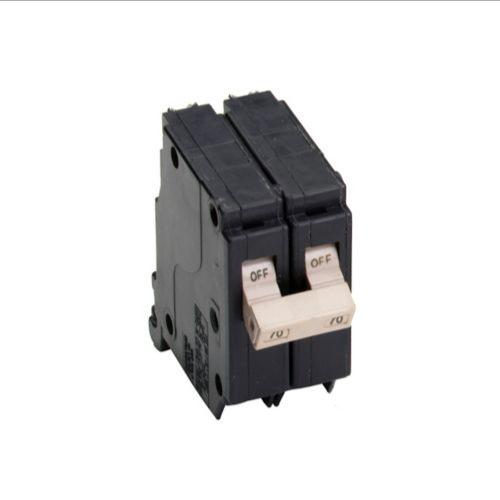

EATON CH270STL
EATON CH280M
EATON CH3090N
EATON CH335O
EATON CH325P

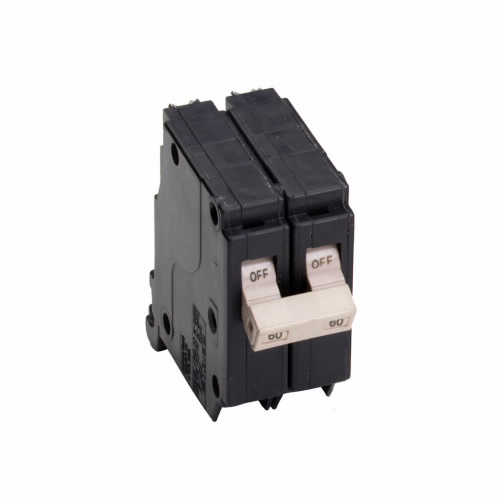

EATON CHF260Q
EATON CH170STR
EATON CH345S
EATON CH315SWT
EATON CH2100U
EATON CH2110V
EATON CH370W
EATON CH330HIDX
EATON CH170Y
EATON CH160Z
EATON CH220M50A1
EATON CH290B1
EATON CH220HIDC1
EATON CH2125XD1
EATON CH120E1
EATON CH315F1
EATON CH310G1
EATON CH2150H1
EATON CH2100NI1
StyleModelHeightNo. Of PolesVoltageAmpsInterrupt RatingCircuit Breaker TypeFeaturesNo. Of WiresPrice
A
CH360		2 1/4"3240V60A10 kAICCH--€210.76
B
CH2100CS		2 1/4"2120/240V100A10 kAICCHClamshell Pack-€542.61
C
CH3080ST		2 1/5"3240V80A10 kAICCHShunt Trip-€793.31
D
CH2125		2 3/4"2120/240V125A10 kAICCH--€199.78
E
CH330		2 3/5"3240V30A10 kAICCH--€205.00
F
CH270		2 3/5"2120/240V70A10 kAICCH--€172.33
G
CH3100		2 3/5"3240V100A10 kAICCH--€433.33
H
CH320		2 3/5"3-20A10 kAICCH--€205.00
I
CH350		2 3/5"3240V50A10 kAICCH--€205.00
J
CH350SWST		2 4/5"3120/240V50A10 kAICCH--€1,165.73
K
CH340		2.7"3240V40A10 kAICCH--€205.00
C
CH350ST		3 1/2"3240V50A10 kAICCHShunt Trip-€704.14
L
CH270ST		3 1/2"2120/240V70A10 kAICCHShunt Trip-€609.57
M
CH280		3 1/2"2120/240V80A10 kAICCH--€187.99
N
CH3090		3 1/2"3240V90A10 kAICCH--€433.33
C
CH340ST		3 1/2"3240V40A10 kAICCHShunt Trip-€704.14
O
CH335		3 1/2"3240V35A-CH--€242.90
P
CH325		3 1/2"3240V25A10 kAICCH--€223.10
C
CH345ST		3 1/2"3240V45A10 kAICCHShunt Trip-€1,436.22
C
CH370ST		3 1/2"3240V70A10 kAICCHShunt Trip-€786.94
C
CH360ST		3 1/2"3240V60A10 kAICCHShunt Trip-€704.14
Q
CHF260		3 1/2"2120/240V60A10 kAICStandard--€67.03
L
CH280ST		3 1/2"2120/240V80A10 kAICCHShunt Trip-€791.16
L
CH290ST		3 1/2"2120/240V90A10 kAICCHShunt Trip-€791.16
C
CH330ST		3 1/2"3240V30A10 kAICCHShunt Trip-€704.14
L
CH260ST		3 1/2"2120/240V60A10 kAICCHShunt Trip-€443.50
C
CH320ST		3 1/2"3240V20A10 kAICCHShunt Trip-€704.14
R
CH170ST		3 1/2"1120/240V70A10 kAICCHShunt Trip-€823.74
N
CH3080		3 1/2"3240V80A10 kAICCH--€433.33
J
CH320SWST		3 1/2"3120/240V20A10 kAICCH--€1,182.39
S
CH345		3 1/2"3240V45A10 kAICCH--€242.90
C
CH3090ST		3 1/2"3240V90A10 kAICCHShunt Trip-€793.31
R
CH160ST		3 1/2"1120/240V60A10 kAICCHShunt Trip--
RFQ
T
CH315SW		3 1/4"3120/240V15A10 kAICCH--€259.18
U
CH2100		3 1/4"2120/240V100A10 kAICCH--€180.16
T
CH320SW		3 1/4"3120/240V20A10 kAICCH--€137.97
V
CH2110		3 1/4"2120/240V-10 kAICCH--€414.88
W
CH370		3 1/5"3240V70A10 kAICCH--€371.60
C
CH315ST		3 3/4"3240V15A10 kAICCHShunt Trip-€645.46
C
CH3100ST		3 3/4"3240V100A10 kAICCHShunt Trip-€820.78
X
CH330HID		3 3/8"3240V-10 kAICCH--€1,536.51
Y
CH170		3 3/8"1120/240V-10 kAICCH--€181.90
Z
CH160		3 3/8"1120/240V60A10 kAICCH--€74.77
A1
CH220M50		3 3/8"2120/240V20A10 kAICCHHigh-Ambient3€189.85
X
CH315HID		3 3/8"3240V-10 kAICCH--€1,536.51
A1
CH250M50		3 3/8"2120/240V50A10 kAICCH-3€63.97
A1
CH270M50		3 3/8"2120/240V-10 kAICCH-3€151.61
B1
CH290		3 3/8"2120/240V90A10 kAICCH--€175.27
C1
CH220HID		3 3/8"2120/240V-10 kAICCH--€510.04
D1
CH2125X		3 4/5"2120/240V125A10 kAICCHReplaces CG1 Main2€1,483.35
D1
CH2150X		3 4/5"2120/240V150A10 kAICCHReplaces CG1 Main2€934.79
C1
CH230HID		3 4/5"2120/240V-10 kAICCH--€607.92
D1
CH2100X		3 4/5"2120/240V100A10 kAICCHReplaces CG1 Main2€803.45
E1
CH120		3"1120/240V20A10 kAICCH-3€50.63
F1
CH315		3"3240V15A10 kAICCH--€205.00
G1
CH310		3"3240V10A10 kAICCH--€242.90
H1
CH2150		3"2120/240V150A10 kAICCH---
RFQ
I1
CH2100N		3"2120/240V100A10 kAICCHMcb Kit-€574.53
T
CH340SW		3"3120/240V40A10 kAICCH--€171.75
L
CH2125ST		4 2/5"2120/240V125A10 kAICCHShunt Trip-€1,873.87
L
CH2100ST		4 2/5"2120/240V100A10 kAICCHShunt Trip-€786.94

Features

  • Eaton CH Series circuit breakers have a sliding handle with ON & OFF indication positions for easy identification of the breaker's status.
  • They have 1 / 2 / 3-poles for application-specific performance.
  • Their thermal-magnetic trip mechanism prevents nuisance tripping due to mild overloads while acting almost instantaneously during severe short-circuit conditions.
  • Eaton CH Series circuit breakers having more than one pole are equipped with an internal common trip connection for simultaneous operation of the poles.
  • They have a quick-make & quick-break switch mechanism for safe & efficient operation.
  • These circuit breakers require 3/4-inch (19.1 mm) space per pole for installation.
  • Selected models have a clamshell pack for enhanced durability, an MCB kit for easy installation on MCBs and a shunt trip for tripping the breakers remotely at any time.

Compatible Accessories

  • Eaton CHHT Handle Tie Bar: This handle tie bar with a moulded plastic handle cover can physically join the handles of adjacent CH type circuit breakers having a single pole.
  • Eaton CHPL Handle Lockoff: This is a padlockable device that locks the handle of escutcheon-mounted CH-type circuit breakers.
  • Eaton CHML Mechanical Interlock: It secures & locks 2, 3 & 4-pole CH type breakers.

Standards and Approvals

  • UL 489

Frequently Asked Questions

What is the voltage rating of these Eaton CH Series circuit breakers?

Eaton CH Series circuit breakers have a voltage rating of 120 / 240V and an interrupt rating of 10kAIC.

What are the points to inspect before operating these Eaton CH Series circuit breakers?

  • Remove the dust, dirt, grease, moisture or foreign contaminants from the unit.
  • Check that the unit's switch is free to move by switching the unit ON & OFF several times.
  • Inspect the unit for any cracks, chipping or discolouration. Tighten the terminals & connectors. Check the mounting hardware.
  • Remove any safety hazards near the installed area.

What wire gauges are suitable for wiring these Eaton CH Series circuit breakers?

  • #10-1/0 AWG
  • #14-2 AWG
  • #14-8 AWG
