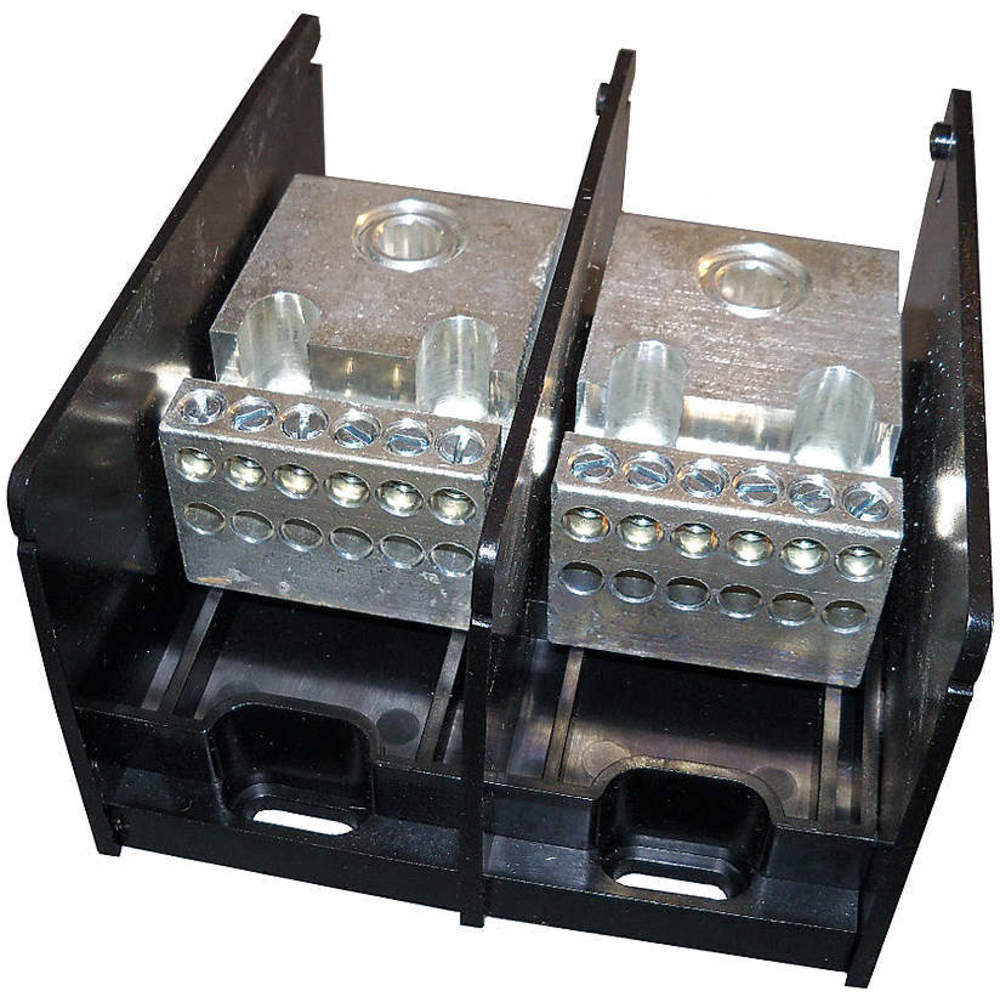

MERSEN FERRAZ MPDB69082 Distribution Block, Standard, 600V, 350A, 1 Pole
Item: AF8ECLModel: MPDB69082Cross Ref: 25CC32
7 In Stock
Ships within 2 days via
10.00% off
€120.50 /unit
This product can only be shipped in multiples of 9Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Distribution Block |
| Ac Voltage Rating | 1000V |
| Ac/dc | AC/DC |
| Ampere Rating (al) | 270A |
| Ampere Rating (cu) | 350A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Material | Aluminum |
| Connector Material Finish | Tin Plated |
| Connector Type | Box |
| Depth | 3.55" |
| Flammability Rating | V-0 |
| For Conductor Material | Aluminum |
| For Maximum Line Wire Size | 500 kcmil |
| For Maximum Load Wire Size | 4 AWG |
| For Minimum Line Wire Size | 4 AWG |
| For Minimum Load Wire Size | 14 AWG |
| Frequency | 50/60 Hz |
| Height | 90.2 mm |
| Housing Color | Black |
| Installation Mounting | Direct Screw Mount |
| Length | 144.8 mm |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 12 |
| Load Side Connection Type | Lug |
| Max. Amps | 350A |
| Maximum Current | 380A |
| Maximum Voltage | 1000V AC/DC |
| Mounting Type | Surface Mount |
| Number Of Poles | 2 |
| Overall Depth | 3.55" |
| Overall Length | 5.7" |
| Overall Width | 5.31" |
| Power Distribution Block Design | Open |
| Primary Hex/screw Size | 13/16"-16 x 1.06 |
| Primary Hole Diameter | 22/25" |
| Primary Number Of Openings Per Pole | 1 |
| Primary Torque Rating | 500-#4 500 |
| Primary Wire Range | 4 AWG to 500 MCM |
| Primary Wire Range | #4 AWG to 500 kcmil |
| Product Datasheet | mersen-ferraz-mpdbc6263.pdf |
| Product Group | Power Distribution Blocks |
| Rated Voltage Ac Ul | 1000V |
| Rated Voltage Dc Ul | 1000V |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 12 |
| Secondary Hex/screw Size | 5/16"-24 |
| Secondary Hex/screw Size Thread Length | 0.38" |
| Secondary Hole Diameter | 0.27" |
| Secondary Number Of Openings Per Pole | 12 |
| Secondary Torque Rating | #4-#8 40, #10-#14 35 |
| Secondary Wire Range | #4 to #14 |
| Secondary Wire Range (awg) | 14 AWG to 4 AWG |
| Short Circuit Rating (class Cc) | 100 Ka With 30A Fuse |
| Short Circuit Rating (class G) | 100 Ka With 60A Fuse |
| Short Circuit Rating (class J) | 100 kA With 400A Fuse |
| Short Circuit Rating (class L) | 100 kA With 400A Fuse |
| Short Circuit Rating (class Rk1) | 100 kA With 200A Fuse |
| Short Circuit Rating (class Rk5) | 100 kA With 100A Fuse |
| Short Circuit Rating (class T) | 100 kA With 400A Fuse |
| Short Circuit Rating (standalone) | 10 kA |
| Standards | Csa Class 6228-01, Ul 1953 |
| Terminal Material | Aluminum |
| Voltage | 600V AC/DC |
| Width | 134.9 mm |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 14.45 |
| HS code | 8536904000 |
| Country of Origin | MX |
Product Details:
- Primary Connections/Pole (1)
- Power Distribution Block Design (Open)
Documentation:
Product Variants
| Product | Model | Number Of Poles | For Conductor Material | Line Connections/pole | Load Connections/pole | For Maximum Line Wire Size | For Maximum Load Wire Size | Height | Connector Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MPDBC6263 | 1 | - | - | - | - | - | 2 mm | - | 1 | €6.47 | |
 |
MPDBC6667 | 1 | - | - | - | - | - | 2 mm | - | 1 | €10.36 | |
 |
MPDBC6869 | 1 | - | - | - | - | - | 2 mm | - | 1 | €17.68 | |
 |
MPDB63101 | 1 | Aluminum | 1 | 1 | 4 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €11.13 | |
 |
MPDB63131 | 1 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €18.98 | |
 |
MPDB63132 | 2 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €33.19 | |
 |
MPDB63133 | 3 | Aluminum | 1 | 4 | 2/0 AWG | 4 AWG | 71.4 mm | Aluminum | 1 | €39.26 |
