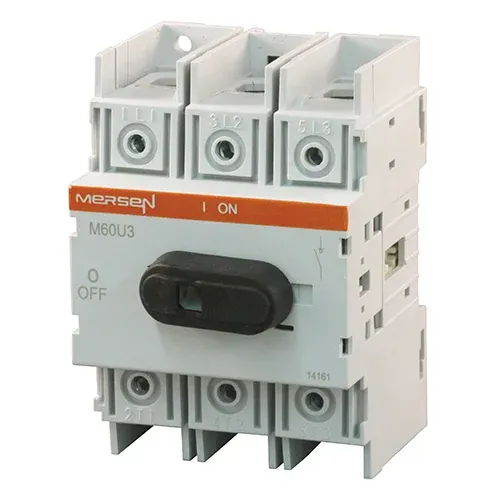

MERSEN FERRAZ M60U3 Non Fused Disconnect, 600V, 60A, 3 Pole
Get it by Friday, Aug 28
€507.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Non-Fused Disconnect |
| Ac Voltage Rating | 600V |
| Ac/dc | AC |
| Amps | 60A |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Box |
| Finish | Silver Plated |
| Height | 56.4 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 100.1 mm |
| Max. Hp Per Fla | 3 Phase 240V 20 Hp, 480V 40 Hp, 600V 40 Hp, 1 Phase 120V 3 Hp, 240V 7.5 Hp |
| No. Of Poles | 3 |
| Product Datasheet | mersen-ferraz-m100u3.pdf |
| Product Group | UL/CSA Switches |
| Rated Insulation Voltage | 750V |
| Rated Voltage Ac Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | Up to 200 Ka With Fuses |
| Short Circuit Rating Class J | 50 kA At 150A |
| Torque | 6.214 N-m |
| Width | 70.1 mm |
| Wiring Range | #14 to 4 |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 5.64 |
| Ship length (cm) | 10.01 |
| Ship width (cm) | 7.01 |
Documentation:
Product Variants
| Product | Model | Amps | Height | Installation Mounting | Connection/terminal Type | Rated Insulation Voltage | Ac/dc | Short Circuit Rating Class J | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M100U3 | 100A | 56.4 mm | Direct Screw Mount | Box | 750V | AC | 50 kA At 150A | 55 lbs.-in. | €629.31 | |
|
M100U3DM | 100A | 66.5 mm | Panel Mount | Box | 750V | AC | 50 kA At 150A | 55 lbs.-in. | €644.12 | |
|
M1200U30 | 1200A | 131.6 mm | Direct Screw Mount | Blade | 1000V | AC/DC | - | - | €21,823.95 | |
 |
M200U03 | 200A | 70.1 mm | Direct Screw Mount | Blade | 1000V | AC/DC | 200 kA At 200A | - | €1,900.95 | |
|
M200U12 | 200A | 70.1 mm | Direct Screw Mount | Blade | 1000V | AC/DC | 200 kA At 200A | - | €1,663.35 | |
|
M200U30 | 200A | 70.1 mm | Direct Screw Mount | Blade | 1000V | AC/DC | 200 kA At 200A | - | €1,520.76 | |
 |
M30U3 | 30A | 56.4 mm | Direct Screw Mount | Box | 750V | AC | 50 kA At 60A | 6.214 N-m | €421.41 |
