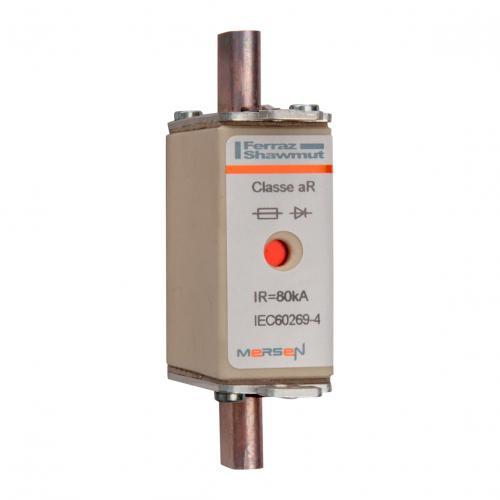

MERSEN FERRAZ H320075 NH000UD69V250PV Fuse Link, 250A, 690V
Get it by Wednesday, Dec 24
€906.17 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max I.r./breaking Capacity I1 | 80 kA |
| Ac/dc | AC |
| Ampere Rating | 250A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 44400 sq. A sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Plain Blades |
| Height | 52.5 mm |
| Indication System | Yes |
| Indication System Type | Double Indicator |
| Length | 78.5 mm |
| Melting I2t | 7540 sq. A sec. |
| Mounting | Clip |
| Power Dissipation At Rated Current Value | 44.1 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 21 mm |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 8 |
| Ship width (cm) | 6.4 |
Product Variants
| Product | Model | Mounting | Height | Fuse Size | Diameter | Amps | Dc Voltage Rating | Body Style | Body Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1017198 | Clip | - | 14" x 51" | 14.3 mm | - | - | - | - | 10 | €1,005.32 | |
 |
A300012 | Bolted | 56.5 mm | 31 | - | - | - | - | - | 3 | €1,825.20 | |
 |
A300035 | Bolted | 56.5 mm | 31 | - | - | - | - | - | 1 | €638.99 | |
 |
A300058 | Bolted | 48 mm | 30 | - | - | - | - | - | 3 | €1,700.46 | |
 |
A300127 | Bolted | 48 mm | 30 | - | - | - | - | - | 3 | €1,514.46 | |
 |
A300403 | Bolted | 48 mm | 30 | - | - | - | - | - | 3 | €1,742.08 | |
 |
A300472 | Bolted | 56.5 mm | 31 | - | - | - | - | - | 1 | €580.81 |
