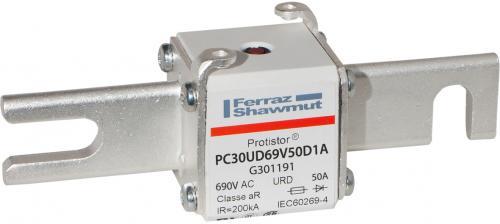

MERSEN FERRAZ G301191 Fuse, 50A
Get it by Tuesday, Aug 18
€1,595.92 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Amps | 50A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 0.68 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Din 110 Blades |
| Finish | Silver Plated |
| Fuse Size | 30 |
| Height | 48 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 134.6 mm |
| Melting I2t | 0.116 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 9 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 40 mm |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 14.5 |
| Ship width (cm) | 13.49 |
Product Variants
| Product | Model | Amps | Connection/terminal Type | Connection/terminal Material | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Melting I2t | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B300059 | 400A | Flush Ends | Brass | 700V | 60 W | 130 sq. kA sec. | 690V | 23 sq. kA sec. | 3 | €1,700.46 | |
 |

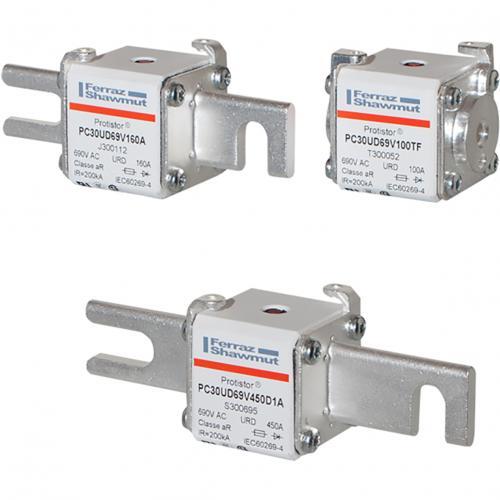

B300128 | 63A | Slotted Blades | Copper | 700V | 14 W | 1.2 sq. kA sec. | 690V | 0.2 sq. kA sec. | 1 | €421.70 | |
 |
B300404 | 500A | Din 80 Blades | Copper | 700V | 88 W | 264 sq. kA sec. | 690V | 41 sq. kA sec. | 3 | €1,742.08 | |
 |

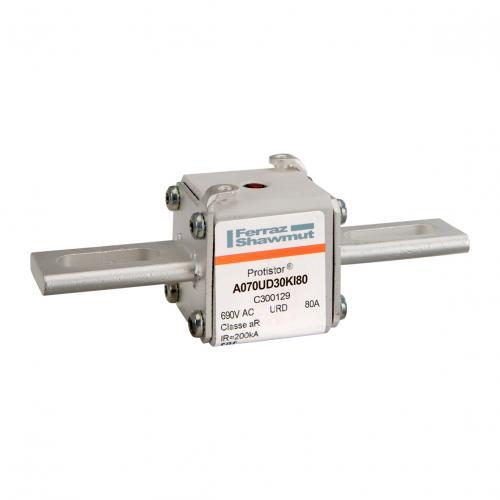

C300129 | 80A | Slotted Blades | Copper | 700V | 19 W | 1.9 sq. kA sec. | 690V | 0.33 sq. kA sec. | 1 | €421.70 | |
 |

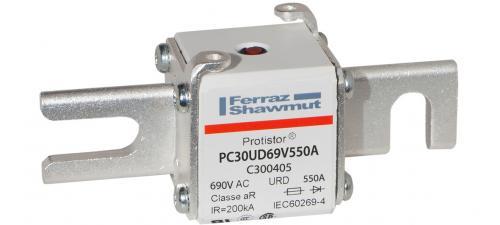

C300405 | 550A | Din 80 Blades | Copper | 700V | 90 W | 330 sq. kA sec. | 690V | 52 sq. kA sec. | 3 | €1,742.08 | |
|
D300130 | 100A | Slotted Blades | Copper | 700V | 26 W | 2.7 sq. kA sec. | 690V | 0.47 sq. kA sec. | 1 | €421.70 | |
 |

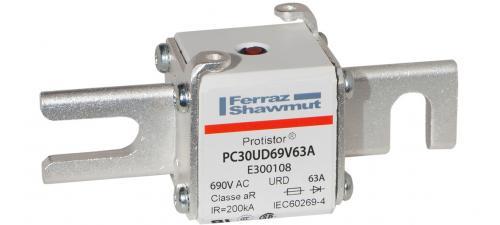

E300108 | 63A | Din 80 Blades | Copper | 700V | 14 W | 1.2 sq. kA sec. | 690V | 0.2 sq. kA sec. | 3 | €1,501.32 |
