MERSEN FERRAZ F330239 DN00UB69V125L Fuse, 125A
Get it by Tuesday, Aug 18
€708.44 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac/dc | AC/DC |
| Amps | 125A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 6600 sq. A sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Din 80 Blades |
| Finish | Silver Plated |
| Height | 55.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 100 mm |
| Melting I2t | 1170 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 33 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 690V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 20 mm |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 8 |
| Ship length (cm) | 11 |
| Ship width (cm) | 10.01 |
Product Variants
| Product | Model | Amps | Height | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Finish | Rated Voltage Ac Ul | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

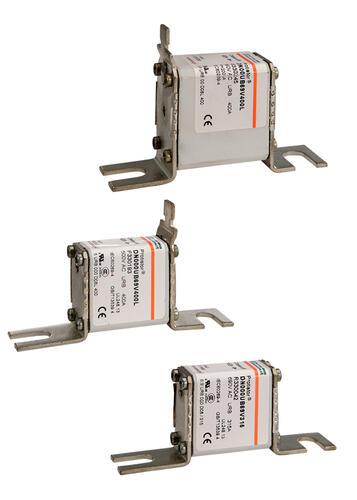

A330027 | 200A | 38.5 mm | Din 80 Blades | 200 kA | Silver Plated | 690V | 36 W | 31500 sq. A sec. | 3 | €729.47 | |
|
A330257 | 80A | 65 mm | Din 110 Blades | 200 kA | Silver Plated | 690V | 25 W | 2200 sq. A sec. | 1 | €250.67 | |
|
B330028 | 250A | 38.5 mm | Din 80 Blades | 200 kA | Silver Plated | 690V | 45 W | 52000 sq. A sec. | 3 | €729.47 | |
 |

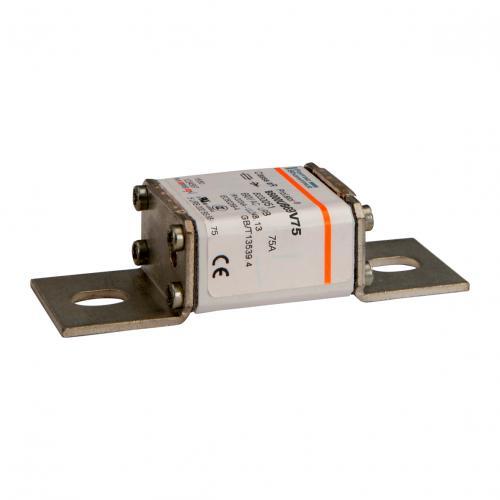

B330051 | 75A | 22.5 mm | L Brackets | 200 kA | TiN Plated | 690V | 20.5 W | 2250 sq. A sec. | 1 | €240.61 | |
 |

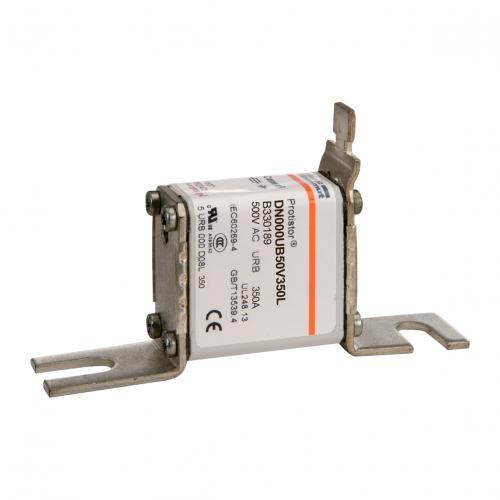

B330189 | 350A | 55.5 mm | Din 80 Blades | 120 kA | Silver Plated | 500V | 58 W | 110000 sq. A sec. | 3 | €767.53 | |
|
B330258 | 100A | 65 mm | Din 110 Blades | 200 kA | Silver Plated | 690V | 28 W | 3900 sq. A sec. | 3 | €752.00 | |
|
C330029 | 315A | 38.5 mm | Din 80 Blades | 200 kA | Silver Plated | 690V | 58 W | 82000 sq. A sec. | 3 | €729.47 |
