MERSEN FERRAZ Protistor Fuses, 500 to 690VAC/700VAC

Filter

Style	Model	Amps	Height	Connection/terminal Type	Ac Max. I R Breaking Capacity I1	Finish	Rated Voltage Ac Ul	Power Dissipation @ Rated Amps Value	Clearing I2t @ Rated Voltage	Pkg. Qty.	Price
A	V330275	16A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	7 W	52 sq. A sec.	3	€623.74
B	T330274	20A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	9 W	75 sq. A sec.	1	€207.91

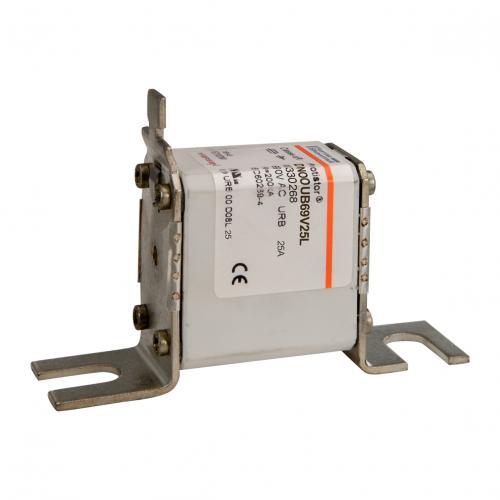

C	M330268	25A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	11 W	120 sq. A sec.	3	€623.74
D	N330269	32A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	15 W	210 sq. A sec.	3	€623.74
D	P330270	40A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	18 W	400 sq. A sec.	3	€623.74
D	Q330271	50A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	21 W	700 sq. A sec.	3	€623.74
D	R330272	63A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	23 W	1200 sq. A sec.	3	€623.74
D	H330126	75A	27 mm	L Brackets	200 kA	TiN Plated	690V	20.5 W	2250 sq. A sec.	3	€1,471.73
E	B330051	75A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	20.5 W	2250 sq. A sec.	1	€240.61
F	C330052	80A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	21 W	2500 sq. A sec.	1	€386.33
D	T330182	80A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	21 W	2500 sq. A sec.	3	€684.92
D	D330237	80A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	25 W	2200 sq. A sec.	3	€668.37
D	K330036	80A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	21 W	2500 sq. A sec.	3	€694.66
D	W330023	80A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	21 W	2500 sq. A sec.	3	€729.47
D	A330257	80A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	25 W	2200 sq. A sec.	1	€250.67
D	X330024	100A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	23 W	4200 sq. A sec.	3	€729.47
D	V330183	100A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	23 W	4200 sq. A sec.	3	€684.92
D	L330037	100A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	23 W	4200 sq. A sec.	3	€694.66
G	D330053	100A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	23 W	4200 sq. A sec.	3	€791.45
D	E330238	100A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	28 W	3900 sq. A sec.	3	€708.44
D	B330258	100A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	28 W	3900 sq. A sec.	3	€752.00
D	L330129	110A	27 mm	L Brackets	200 kA	TiN Plated	690V	24.5 W	6800 sq. A sec.	3	€1,544.08
H	E330100	110A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	24.5 W	6800 sq. A sec.	3	€719.33
I	E330054	125A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	26 W	8900 sq. A sec.	3	€791.45
D	M330130	125A	27 mm	L Brackets	200 kA	TiN Plated	690V	26 W	8900 sq. A sec.	1	€499.12
D	M330038	125A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	26 W	8900 sq. A sec.	3	€694.66
D	F330239	125A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	33 W	6600 sq. A sec.	3	€708.44
D	W330184	125A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	26 W	8900 sq. A sec.	3	€684.92
D	C330259	125A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	33 W	6600 sq. A sec.	1	€250.67
D	Y330025	125A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	26 W	8900 sq. A sec.	3	€729.47
D	P330132	160A	27 mm	L Brackets	200 kA	TiN Plated	690V	31 W	16000 sq. A sec.	1	€544.05
D	N330039	160A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	31 W	16000 sq. A sec.	3	€694.66
D	G330240	160A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	36 W	14000 sq. A sec.	3	€708.44
J	Z330026	160A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	31 W	16000 sq. A sec.	3	€729.47
D	D330260	160A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	36 W	14000 sq. A sec.	3	€752.00
K	F330055	160A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	31 W	16000 sq. A sec.	3	€762.50
L	G330056	200A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	36 W	31500 sq. A sec.	3	€968.14
D	A330027	200A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	36 W	31500 sq. A sec.	3	€729.47
D	H330241	200A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	42 W	24000 sq. A sec.	3	€772.44
D	P330040	200A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	36 W	31500 sq. A sec.	3	€694.66
D	E330261	200A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	42 W	24000 sq. A sec.	3	€944.70
D	Q330041	250A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	45 W	52000 sq. A sec.	3	€694.66
M	H330057	250A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	45 W	52000 sq. A sec.	3	€880.15
D	B330028	250A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	45 W	52000 sq. A sec.	3	€729.47
D	J330242	250A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	50 W	42500 sq. A sec.	3	€772.44
D	F330262	250A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	50 W	42500 sq. A sec.	3	€944.70
D	K330243	315A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	58 W	81000 sq. A sec.	3	€772.44
N	R330042	315A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	58 W	82000 sq. A sec.	3	€694.66
D	G330263	315A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	58 W	81000 sq. A sec.	1	€314.90
D	C330029	315A	38.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	58 W	82000 sq. A sec.	3	€729.47
O	J330058	315A	22.5 mm	L Brackets	200 kA	TiN Plated	690V	58 W	82000 sq. A sec.	3	€880.15
D	L330244	350A	55.5 mm	Din 80 Blades	200 kA	Silver Plated	690V	60 W	118000 sq. A sec.	3	€842.93
P	B330189	350A	55.5 mm	Din 80 Blades	120 kA	Silver Plated	500V	58 W	110000 sq. A sec.	3	€767.53
D	H330264	350A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	60 W	118000 sq. A sec.	3	€944.70

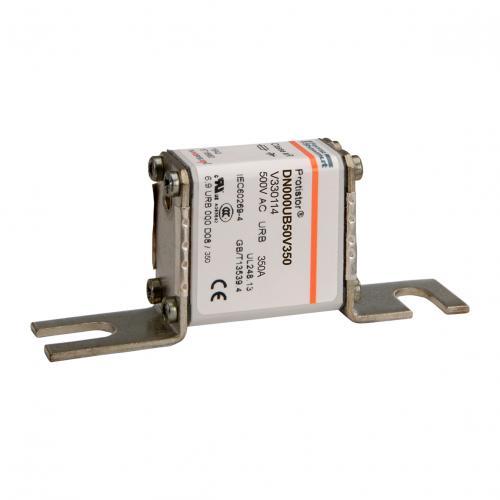

Q	V330114	350A	38.5 mm	Din 80 Blades	120 kA	Silver Plated	500V	58 W	110000 sq. A sec.	3	€760.60
D	W330115	350A	38.5 mm	Din 80 Blades	120 kA	Silver Plated	500V	58 W	110000 sq. A sec.	3	€767.53

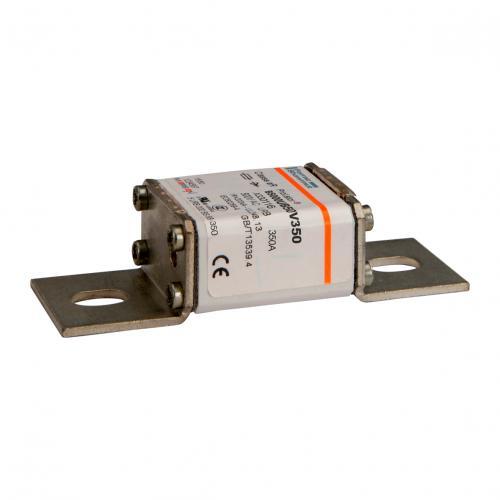

R	X330116	350A	22.5 mm	L Brackets	120 kA	TiN Plated	500V	58 W	110000 sq. A sec.	3	€1,089.75
D	E330192	400A	38.5 mm	Din 80 Blades	120 kA	Silver Plated	500V	66 W	160000 sq. A sec.	3	€767.53
S	J330265	400A	65 mm	Din 110 Blades	200 kA	Silver Plated	690V	70 W	150000 sq. A sec.	3	€944.70
D	D330191	400A	38.5 mm	Din 80 Blades	120 kA	Silver Plated	500V	66 W	160000 sq. A sec.	3	€760.60

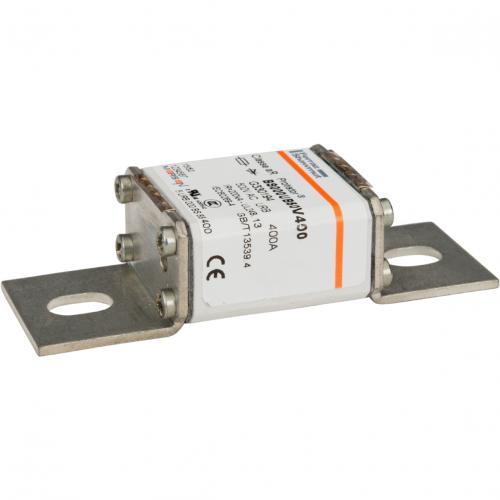

T	G330194	400A	22.5 mm	L Brackets	120 kA	TiN Plated	500V	66 W	160000 sq. A sec.	3	€1,089.75
