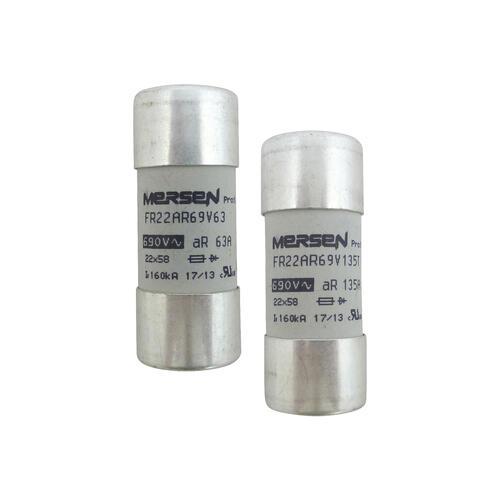

MERSEN FERRAZ F1056671 FR22AR69V63T Fuse Link, 63A, 690V
Get it by Monday, Aug 31
€269.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max. I R Breaking Capacity I1 | 160 kA |
| Ac/dc | AC |
| Amps | 63A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 3100 sq. A sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 22.2 mm |
| Finish | Silver Plated |
| Fuse Size | 22" x 58" |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 58 mm |
| Melting I2t | 386.8 sq. A sec. |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 15.5 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
Shipping Info:
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 2.39 |
| Ship length (cm) | 11.91 |
| Ship width (cm) | 11.4 |
Product Variants
| Product | Model | Amps | Mounting | Connection/terminal Type | Connection/terminal Material | Speed Characteristic | Ac Max. I R Breaking Capacity I1 | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1017198 | 6A | Clip | Ferrule | Copper | GR | 160 kA | 2 W | 35 sq. A sec. | 10 | €1,005.32 | |
 |
A300012 | 315A | Bolted | Din 80 Blades | Copper | AR | 200 kA | 65 W | 44000 sq. A sec. | 3 | €1,825.20 | |
 |
A300035 | 630A | Bolted | Slotted Blades | Copper | AR | 200 kA | 85 W | 430000 sq. A sec. | 1 | €638.99 | |
 |
A300058 | 350A | Bolted | Flush Ends | Brass | AR | 200 kA | 57 W | 86 sq. kA sec. | 3 | €1,700.46 | |
 |
A300127 | 400A | Bolted | Din 110 Blades | Copper | AR | 200 kA | 65 W | 130 sq. kA sec. | 3 | €1,514.46 | |
 |
A300403 | 450A | Bolted | Din 80 Blades | Copper | AR | 200 kA | 88 W | 165 sq. kA sec. | 3 | €1,742.08 | |
 |
A300472 | 200A | Bolted | Flush Ends | Brass | AR | 200 kA | 45 W | 15000 sq. A sec. | 1 | €580.81 |
