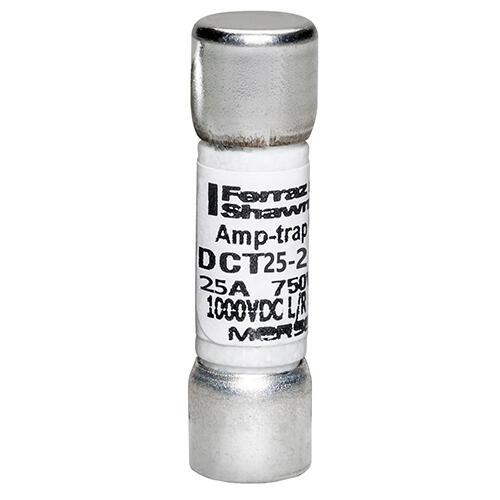

MERSEN FERRAZ DCT25-2 Fuse, Fast Acting, 750VAC/1000 VDC, 25A, Ferrule Mount
Item: CH4XATModel: DCT25-2Cross Ref: 6XPT8
7 In Stock
Ships within 2 days via
10.00% off
€44.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 100 kA |
| Ac Voltage | 750V AC |
| Ac Voltage Rating | 570V AC |
| Ac/dc | AC/DC |
| Amps | 25A |
| Body Material | Fiberglass |
| Body Style | Cylindrical |
| Body/insulating Material | GMG |
| Class | No UL Class |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 1000V DC |
| Diameter | 10.3 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Pv-F, Littelfuse Spf, Mersen Dct Series |
| Equivalent Series | DCT Series, PV-F Series, SPF Series |
| Finish | Tin Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Class | Midget |
| Fuse Size | 1 1/2" x 13/32" |
| Fuse Type | Midget |
| Interrupt Rating | 100 kA at 750V AC, 50 kA at 1000V DC |
| Length | 38.1 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-dct10-2.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 750V |
| Rated Voltage Dc Ul | 1000V |
| Rohs Compliant | Yes |
| Series | DCT Series |
| Speed | Fast Acting |
| Speed Characteristic | Fast Acting |
| Speed Type | Fast Acting |
| Standards | Ce, Ul Recognized, Guide Jfhr2, File E60314, Csa Certified |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.38 |
| Ship length (cm) | 4.11 |
| Ship width (cm) | 2.24 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Material | Class | Mounting | Speed | Diameter | Fuse Type | Ac Voltage | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DCT10-2 | 10A | GMG | Midget | Clip | - | 10.3 mm | Midget | 750V AC | 1 | €40.58 | |
 |
DCT10-H | 10A | GMG | Midget | PC Mount | - | 10.3 mm | Midget | 750V AC | 100 | €7,732.56 | |
 |
DCT1-2 | 1A | Fiberglass | No UL Class | Clip | Fast Acting | 10.3 mm | Midget | 750V AC | 1 | €34.19 | |
 |
DCT12-2 | 12A | Fiberglass | No UL Class | Clip | Fast Acting | 10.3 mm | Midget | 750V AC | 1 | €34.18 | |
|
DCT12-H | 12A | GMG | Midget | PC Mount | Fast Acting | 10.3 mm | Midget | 750V AC | 100 | €7,732.56 | |
 |
DCT15-2 | 15A | Fiberglass | No UL Class | Clip | Fast Acting | 10.3 mm | Midget | 750V AC | 1 | €38.37 | |
|
DCT15-H | 15A | GMG | Midget | PC Mount | Fast Acting | 10.3 mm | Midget | 750V AC | 100 | €8,682.96 |
