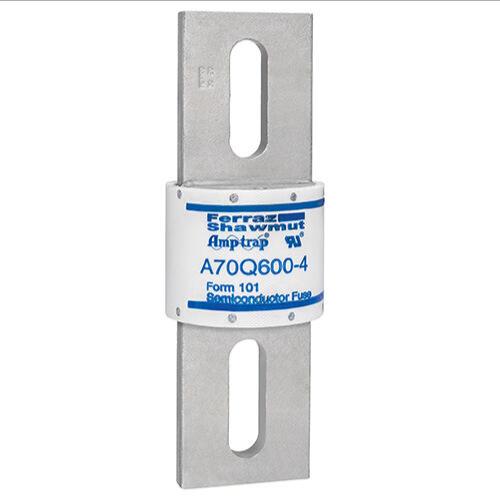

MERSEN FERRAZ A70Q600-4 Semiconductor, High Speed, 700V, 600A, aR Class
Item: CH4VWKModel: A70Q600-4Cross Ref: 6XPL9
7 In Stock
Ships within 2 days via
5.00% off
€787.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 700V AC |
| Ac/dc | AC/DC |
| Amps | 600A |
| Body Material | Fiberglass |
| Body Style | Bolt On |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage | 650V DC |
| Dia. | 63.5 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Fwp, Mersen A70Q |
| Equivalent Series | A70Q, Fwp |
| Finish | TiN Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 7 1/16" x 2 1/2" |
| Interrupt Rating | 100 kA @ 650V DC, 100 kA @ 700V AC |
| Length | 180.1 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a70q100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 700V |
| Rated Voltage Dc Ul | 650V |
| Rohs Compliant | Yes |
| Series | A70Q Series |
| Speed | Fast Acting |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Amps | Dia. | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Body Style | Fuse Size | Ac Voltage | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A70Q100-4 | 100A | 31 mm | 64 kA | Brass | Bolt On | 4 3/8" x 1 1/4" | 700V AC | Bolted | €251.53 | |
| A70Q100-4IL | 100A | 31 mm | 50 kA | Brass | - | - | 700V AC | Bolted | €423.72 | |
| A70Q125-4 | 125A | 38.1 mm | 100 kA | Copper | Bolt On | 5 1/16" x 1 1/2" | 700V AC | Bolted | €367.36 | |
| A70Q125-4IL | 125A | 38.1 mm | 65 kA | Copper | - | - | 700V AC | Bolted | €510.84 | |
| A70Q150-4 | 150A | 38.1 mm | 100 kA | Copper | Bolt On | 5 1/16" x 1 1/2" | 700V AC | Bolted | €367.36 | |
| A70Q150-4IL | 150A | 38.1 mm | 65 kA | Copper | - | - | 700V AC | Bolted | €510.84 | |
| A70Q175-4 | 175A | 38.1 mm | 100 kA | Copper | Blade | - | 700V AC | Bolted | €439.56 |
