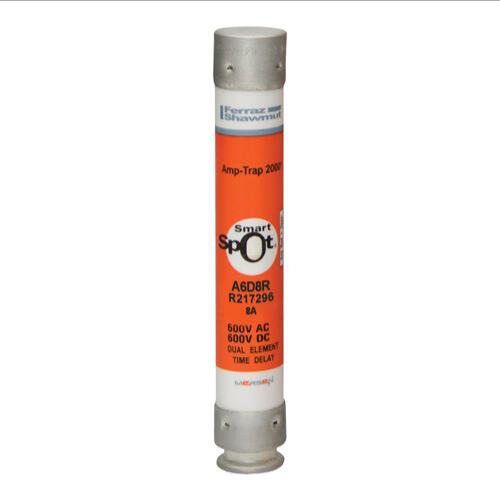

MERSEN FERRAZ A6D8R Time Delay Fuse, 600V, 8A, Class RK1, 1 Pole
Item: AG8LMYModel: A6D8RCross Ref: 4TCG2
7 In Stock
Ships within 2 days via
10.00% off
€35.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 8A |
| Body Material | Polyester |
| Body Style | Cylindrical |
| Body/insulating Material | Polytube |
| Class | Class RK1 |
| Compatible Fuse Block Series | 2Hkrfb, 6Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 600V DC |
| Diameter | 20.6 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Lps-Rk-Spi, Littelfuse Llsrk-Id, Mersen A6D-R |
| Equivalent Series | A6D-R, Llsrk-Id, Lps-Rk-Spi |
| Finish | Tin Plated |
| Fits Fuse Block Style | Rejection |
| Frame Type | A6D |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK1 |
| Fuse Size | 5" x 13/16" |
| Indication System | Yes |
| Indication System Type | Smartspot |
| Interrupt Rating | 100 kA at 600V DC, 200 kA at 600V AC |
| Length | 127 mm |
| Mounting | Clip |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-a2d100r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Series | A6D-R Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Csa C22.2 No. 248.12, Dc Ul 248, Ul 248-12 File E2137 |
| Visual Indication | Indicating |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.06 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.06 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Style | Visual Indication | Diameter | Speed | Class | Dc Voltage Rating | Fits Fuse Block Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A6D100R | 100A | Blade | Indicating | 33.3 mm | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €170.28 | |
 |
A6D10R | 10A | Cylindrical | Indicating | 13/16" | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €52.61 | |
 |
A6D110R | 110A | Blade | Indicating | 46 mm | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €328.75 | |
 |
A6D125R | 125A | Blade | Indicating | 46 mm | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €328.75 | |
 |
A6D12R | 12A | Cylindrical | Indicating | 20.6 mm | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €41.92 | |
 |
A6D150R | 150A | Blade | Indicating | 46 mm | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €284.37 | |
|
A6D15R | 15A | Cylindrical | Indicating | 13/16" | Time Delay | Class RK1 | 600V DC | Rejection | 1 | €32.03 |
