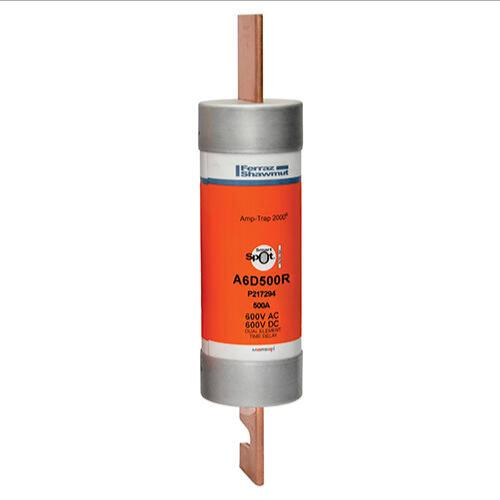

MERSEN FERRAZ A6D500R Time Delay Fuse, 600V, 500A, Class RK1, 1 Pole
Item: AG8LMRModel: A6D500RCross Ref: 4TCK4
7 In Stock
Ships within 2 days via
5.00% off
€617.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 500A |
| Body Material | Polyester |
| Body Style | Blade |
| Body/insulating Material | Polytube |
| Class | Class RK1 |
| Compatible Fuse Block Series | 2Hkrfb, 6Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage | 600V DC |
| Dia. | 79.4 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Lps-Rk-Spi, Littelfuse Llsrk-Id, Mersen A6D-R |
| Equivalent Series | A6D-R, Llsrk-Id, Lps-Rk-Spi |
| Finish | TiN Plated |
| Fits Fuse Block Style | Rejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK1 |
| Fuse Size | 13 3/8" x 3 1/8" |
| Indication System | Yes |
| Indication System Type | Smartspot |
| Interrupt Rating | 100 kA at 600V DC, 200 kA at 600V AC |
| Length | 339.9 mm |
| Mounting | Clip |
| No. Of Poles | 1 |
| Product Datasheet | mersen-ferraz-a2d100r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Series | A6D-R Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Visual Indication | Indicating |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 7.92 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 8.26 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Fuse Size | Body Style | Visual Indication | Connection/terminal Type | Dc Voltage | Speed | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A6D100R | 100A | 33.3 mm | 7 7/8" x 1 5/16" | Blade | Indicating | Blade | 600V DC | Time Delay | 1 | €113.83 | |
 |
A6D10R | 10A | 13/16" | 5" x 13/16" | Cylindrical | Indicating | Ferrule | 600V DC | Time Delay | 1 | €47.14 | |
 |
A6D110R | 110A | 46 mm | 9 5/8" x 1 13/16" | Blade | Indicating | Blade | 600V DC | Time Delay | 1 | €396.44 | |
 |
A6D125R | 125A | 46 mm | 9 5/8" x 1 13/16" | Blade | Indicating | Blade | 600V DC | Time Delay | 1 | €211.03 | |
 |
A6D12R | 12A | 20.6 mm | 5" x 13/16" | Cylindrical | Indicating | Ferrule | 600V DC | Time Delay | 1 | €47.14 | |
 |
A6D150R | 150A | 46 mm | 9 5/8" x 1 13/16" | Blade | Indicating | Blade | 600V DC | Time Delay | 1 | €313.37 | |
|
A6D15R | 15A | 13/16" | 5" x 13/16" | Cylindrical | Indicating | Ferrule | 600V DC | Time Delay | 1 | €65.84 |
