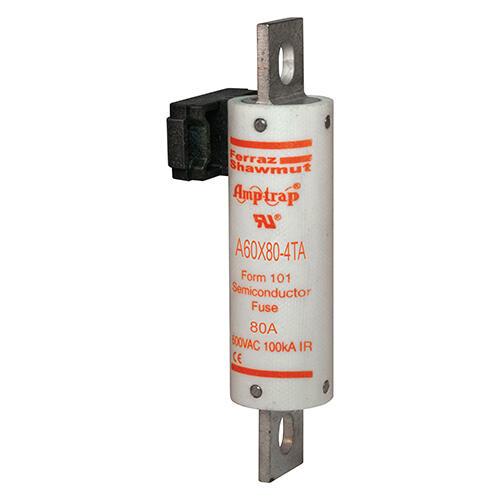

MERSEN FERRAZ A60X80-4TA Semiconductor Fuse, High Speed, 600V, 80A, aR Class, Type 4
Get it by Tuesday, Dec 23
€258.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max I.r./breaking Capacity I1 | 100 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC |
| Amps | 80A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Diameter | 35.8 mm |
| Finish | Tin Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Ta Indicator |
| Length | 112 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a60x10-1.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 600V |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 12.7 |
Product Details:
- TA Indicator
Documentation:
Product Variants
| Product | Model | Diameter | Amps | Visual Indication | Body Style | Body Material | Mounting | Speed Type | Interrupt Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A60X1000-128 | 88.9 mm | 1000A | - | - | GMG | Bolted | High Speed | - | 1 | €1,966.80 | |
 |
A60X1000-128IL | 88.9 mm | 1000A | - | - | GMG | Bolted | High Speed | - | 1 | €1,712.10 | |
 |
A60X100-4 | 25.4 mm | 100A | Non Indicating | Bolt On | Fiberglass | Bolted | High Speed | 200 kA at 600V AC | 1 | €130.16 | |
 |
A60X100-4K | 25.4 mm | 100A | - | - | GMG | Bolted | High Speed | - | 1 | €237.06 | |
 |
A60X100-4TA | 35.8 mm | 100A | - | - | GMG | Bolted | High Speed | - | 1 | €258.30 | |
|
A60X10-1 | 20.6 mm | 10A | - | - | Polytube | Clip | High Speed | - | 1 | €76.07 | |
 |
A60X1-1 | 20.6 mm | 1A | - | - | Polytube | Clip | High Speed | - | 1 | €71.07 |
