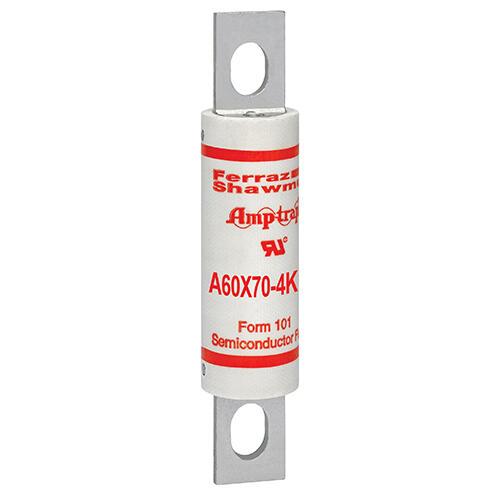

MERSEN FERRAZ A60X70-4K Semiconductor Fuse, High Speed, 600V, 70A, aR Class, Type 4K
Get it by Wednesday, Aug 26
€236.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC |
| Amps | 70A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dia. | 25.4 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Length | 127 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a60x10-1.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 600V |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 14.61 |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Body/insulating Material | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A60X1000-128 | 1000A | 88.9 mm | Bolted | GMG | Hockey Puck, Bolt In | 63 kA | Brass | Silver Plated | 1 | €1,966.80 | |
 |
A60X1000-128IL | 1000A | 88.9 mm | Bolted | GMG | Hockey Puck, Bolt In | 63 kA | Brass | Silver Plated | 1 | €1,712.10 | |
 |
A60X100-4 | 100A | 25.4 mm | Bolted | GMG | Blade | 200 kA | Brass | TiN Plated | 1 | €242.26 | |
 |
A60X100-4K | 100A | 25.4 mm | Bolted | GMG | Blade | 200 kA | Brass | TiN Plated | 1 | €237.06 | |
 |
A60X100-4TA | 100A | 35.8 mm | Bolted | GMG | Blade | 100 kA | Brass | TiN Plated | 1 | €258.30 | |
|
A60X10-1 | 10A | 20.6 mm | Clip | Polytube | Ferrule | 65 kA | Copper | TiN Plated | 1 | €76.07 | |
 |
A60X1-1 | 1A | 20.6 mm | Clip | Polytube | Ferrule | 65 kA | Copper | TiN Plated | 1 | €71.07 |
