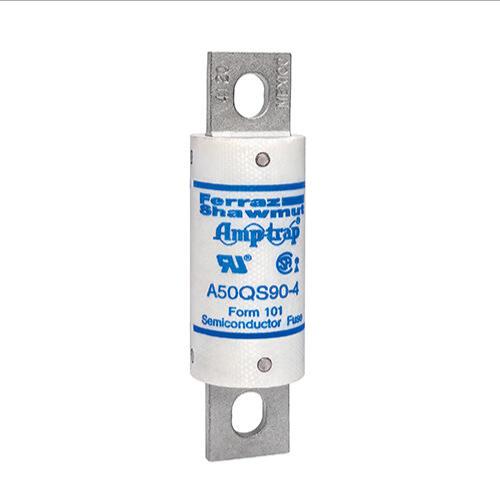

MERSEN FERRAZ A50QS90-4 Semiconductor Fuse, High Speed, 500V, 90A, aR Class
Item: CH4VBLModel: A50QS90-4Cross Ref: 6XPJ0
7 In Stock
Ships within 2 days via
10.00% off
€75.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max I.r./breaking Capacity I1 | 50 kA |
| Ac Voltage | 500V AC |
| Ac/dc | AC/DC |
| Amps | 90A |
| Body Material | Fiberglass |
| Body Style | Bolt On |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dc Voltage Rating | 500V DC |
| Diameter | 25.4 mm |
| Element | Single |
| Equivalent Brand And Series | A50QS, BUSSMANN FWH, LITTELFUSE L50S, MERSEN A50P |
| Equivalent Series | A50P, A50Qs, Fwh, L50S |
| Finish | Tin Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 3 5/8" x 1" |
| Interrupt Rating | 200 kA at 500V AC, 87 kA at 500V DC |
| Length | 92.2 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a50qs100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 500V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Series | A50QS Series |
| Speed | Fast Acting |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
| Standards | Ce, Ul Recognized, Guide Jfhr2, File 60314, Csa Certified Lr12636 |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.38 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 13.34 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Body Material | Mounting | Speed Type | Fits Fuse Block Style | Fuse Size | Fuse Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A50QS1000-4 | 1000A | 73.2 mm | Fiberglass | Bolted | High Speed | Nonrejection | 7" x 2 7/8" | - | €991.39 | |
 |
A50QS1000-4IL | 1000A | 73.2 mm | GMG | Bolted | High Speed | - | - | - | €1,376.18 | |
|
A50QS100-4 | 100A | 25.4 mm | Fiberglass | Bolted | High Speed | Nonrejection | 3 5/8" x 1" | - | €91.94 | |
|
A50QS100-4IL | 100A | 25.4 mm | GMG | Bolted | High Speed | - | - | - | €140.00 | |
|
A50QS100-4Y | 100A | 25.4 mm | Fiberglass | Bolted | High Speed | Nonrejection | 3 5/8" x 1" | - | €109.45 | |
 |
A50QS10-1 | 10A | 14.3 mm | GMG | Clip | High Speed | - | - | - | - | RFQ
|
 |
A50QS1200-4 | 1200A | 73.2 mm | Fiberglass | Bolted | High Speed | Nonrejection | 7" x 2 7/8" | - | €1,020.53 |
