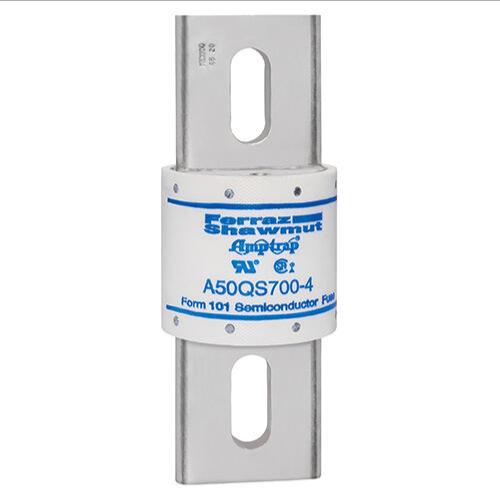

MERSEN FERRAZ A50QS700-4 Semiconductor Fuse, High Speed, 500V 700A, aR Class
Item: CH4VBAModel: A50QS700-4Cross Ref: 6XPH5
7 In Stock
Ships within 2 days via
5.00% off
€552.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 63 kA |
| Ac Voltage | 500V AC |
| Ac/dc | AC/DC |
| Amps | 700A |
| Body Material | Fiberglass |
| Body Style | Bolt On |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage | 500V DC |
| Dia. | 60.5 mm |
| Element | Single |
| Equivalent Brand And Series | A50QS, BUSSMANN FWH, LITTELFUSE L50S, MERSEN A50P |
| Equivalent Series | A50P, A50Qs, Fwh, L50S |
| Finish | Silver Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 6 1/2" x 2 3/8" |
| Interrupt Rating | 200 kA at 500V AC, 87 kA at 500V DC |
| Length | 164.3 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a50qs100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 500V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Series | A50QS Series |
| Speed | Fast Acting |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Ac/dc | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A50QS1000-4 | 1000A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,102.26 | |
 |
A50QS1000-4IL | 1000A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,376.18 | |
|
A50QS100-4 | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €106.18 | |
|
A50QS100-4IL | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €140.00 | |
|
A50QS100-4Y | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €109.45 | |
 |
A50QS10-1 | 10A | 14.3 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | - | RFQ
|
 |
A50QS1200-4 | 1200A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,334.79 |
