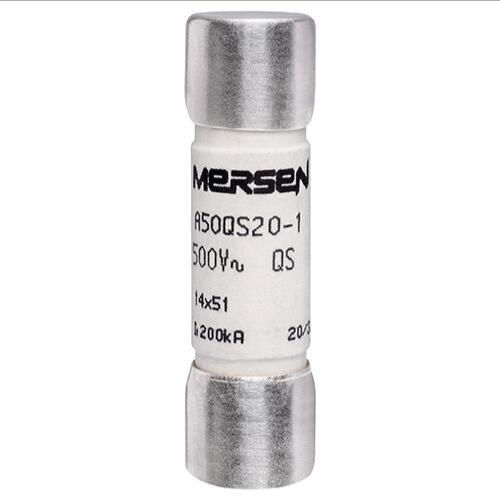

MERSEN FERRAZ A50QS20-1 Semiconductor Fuse, High Speed, 500V 20A, aR Class
Item: CH4UZQModel: A50QS20-1
In Stock : 3 Units Get it by Friday, Aug 28
€379.89 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 500V AC |
| Ac/dc | AC |
| Amps | 20A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 14.3 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Length | 51.1 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a50qs100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 500V |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 5.11 |
| Ship width (cm) | 1.42 |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Ac/dc | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A50QS1000-4 | 1000A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,102.26 | |
 |
A50QS1000-4IL | 1000A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,376.18 | |
|
A50QS100-4 | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €106.18 | |
|
A50QS100-4IL | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €140.00 | |
|
A50QS100-4Y | 100A | 25.4 mm | Bolted | Blade | 50 kA | Brass | TiN Plated | AC/DC | 1 | €109.45 | |
 |
A50QS10-1 | 10A | 14.3 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC | 1 | - | RFQ
|
 |
A50QS1200-4 | 1200A | 73.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,334.79 |
