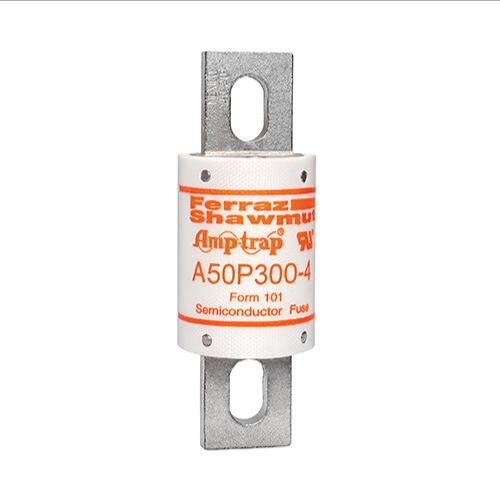

MERSEN FERRAZ A50P300-4 Semiconductor Fuse, High Speed, 500V, 300A, aR Class, Type 4
Item: CH4UWWModel: A50P300-4
7 In Stock
Ships within 2 days via
5.00% off
€439.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 52 kA |
| Ac Voltage | 500V AC |
| Ac/dc | AC/DC |
| Amps | 300A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dia. | 38.1 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Length | 110.2 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a50p100-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 500V |
| Rated Voltage Dc Ul | 450V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 11.02 |
| Ship width (cm) | 3.81 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Ac/dc | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A50P1000-4 | 1000A | 76.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,108.81 | |
 |
A50P1000-4TA | 1000A | 76.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,334.66 | |
|
A50P1000-4TI | 1000A | 76.2 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | AC/DC | 1 | €1,689.60 | |
|
A50P100-4 | 100A | 25.4 mm | Bolted | Blade | 35 kA | Brass | TiN Plated | AC/DC | 1 | - | RFQ
|
|
A50P100-4TA | 100A | 25.4 mm | Bolted | Blade | 52 kA | Brass | TiN Plated | AC/DC | 1 | €269.28 | |
|
A50P100-4TI | 100A | 25.4 mm | Bolted | Blade | 35 kA | Brass | TiN Plated | AC/DC | 1 | €257.52 | |
 |
A50P10-1 | 10A | 14.2 mm | Clip | Ferrule | 50 kA | Copper | TiN Plated | AC/DC | 1 | €76.93 |
