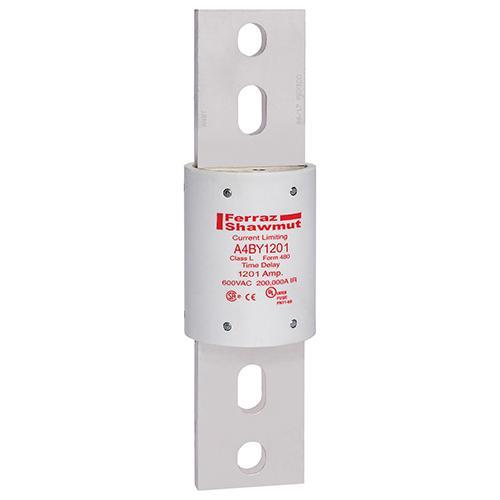

MERSEN FERRAZ A4BY1201 Time Delay Fuse, 600V, 1201A, Class L
Item: CH4UTNModel: A4BY1201Cross Ref: 4ZAR2
7 In Stock
Ships within 2 days via
10.00% off
€1,894.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 1201A |
| Body Material | Glass, Melamine |
| Body Style | Blade |
| Body/insulating Material | GMG |
| Class | L |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage Rating | 300V DC |
| Diameter | 3" |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Klu, Bussmann Ktu, Littelfuse Kllu, Littelfuse Klpc, Mersen A4By |
| Equivalent Series | A4By, Kllu, Klpc, Klu, Ktu |
| Finish | Silver Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class L |
| Fuse Dia. | 3" |
| Fuse Length | 10 3/4" |
| Fuse Size | 10 3/4" x 3" |
| Interrupt Rating | 100 kA @ 300V DC, 200 kA @ 600V AC |
| Length | 10 3/4" |
| Mounting | Bolted |
| Mounting Type | Bolt |
| Product Datasheet | mersen-ferraz-a4by1000.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 300V |
| Rohs Compliant | Yes |
| Series | A4BY Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Csa, Ul |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 2.8 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Body Material | Fuse Dia. | Fuse Length | Dc Voltage Rating | Speed | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A4BY1000 | 1000A | 2 1/2" | Glass, Melamine | 2 1/2" | 10 3/4" | 300V DC | Time Delay | Blade | €906.35 | |
 |
A4BY1200 | 1200A | 2 1/2" | Glass, Melamine | 2 1/2" | 10 3/4" | 300V DC | Time Delay | Blade | €1,377.64 | |
 |
A4BY1400 | 1400A | 3" | Glass, Melamine | 3" | 10 3/4" | 300V DC | Time Delay | Blade | €1,295.56 | |
 |
A4BY1500 | 1500A | 3" | Glass, Melamine | 3" | 10 3/4" | 300V DC | Time Delay | Blade | €1,678.36 | |
 |
A4BY1600 | 1600A | 3" | Glass, Melamine | 3" | 10 3/4" | 300V DC | Time Delay | Blade | €1,508.84 | |
 |
A4BY1800 | 1800A | 3 1/2" | Glass, Melamine | 3 1/2" | 10 3/4" | 300V DC | Time Delay | Blade | €1,780.58 | |
 |
A4BY2000 | 2000A | 3 1/2" | Glass, Melamine | 3 1/2" | 10 3/4" | 300V DC | Time Delay | Blade | €2,514.47 |
