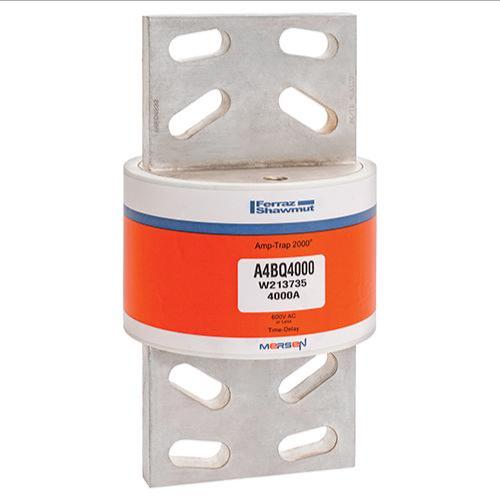

MERSEN FERRAZ A4BQ4000 Time Delay Fuse, 600V, 4000A, Class L, 1 Pole
Item: AG8LJCModel: A4BQ4000Cross Ref: 4ZAL8
In Stock : 4 Units Get it by Thursday, Jul 9
5.00% off
€2,818.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC |
| Amps | 4000A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dia. | 146 mm |
| Finish | Silver Plated |
| Frame Type | A4BQ |
| Frequency | 50/60 Hz |
| Fuse Class | Class L |
| Fuse Dia. | 5 3/4" |
| Fuse Length | 10 3/4" |
| Length | 273 mm |
| Mounting | Bolted |
| No. Of Poles | 1 |
| Product Datasheet | mersen-ferraz-a4bq1000.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rohs Compliant | Yes |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 10.04 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Material | Fuse Dia. | Fuse Length | Speed | Body Style | Mounting | Speed Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A4BQ1000 | 1000A | Gmg | 2 1/2" | 10 3/4" | - | - | Bolted | Time Delay | €1,508.41 | |
 |
A4BQ1200 | 1200A | Melamine | - | - | Time Delay | Blade | Bolted | - | €1,508.41 | |
 |
A4BQ1400 | 1400A | Melamine | 3" | 10 3/4" | Time Delay | Blade | Bolted | Time Delay | €2,714.06 | |
 |
A4BQ1500 | 1500A | Melamine | 3" | 10 3/4" | Time Delay | Blade | Bolted | Time Delay | €1,466.75 | |
 |
A4BQ1600 | 1600A | Melamine | 3" | 10 3/4" | Time Delay | Blade | Bolted | Time Delay | €1,466.75 | |
 |
A4BQ1800 | 1800A | Melamine | 3 1/2" | 10 3/4" | Time Delay | Blade | Bolted | Time Delay | €1,621.19 | |
|
A4BQ2000 | 2000A | Melamine | - | - | Time Delay | Blade | Bolted | - | €1,621.19 |
