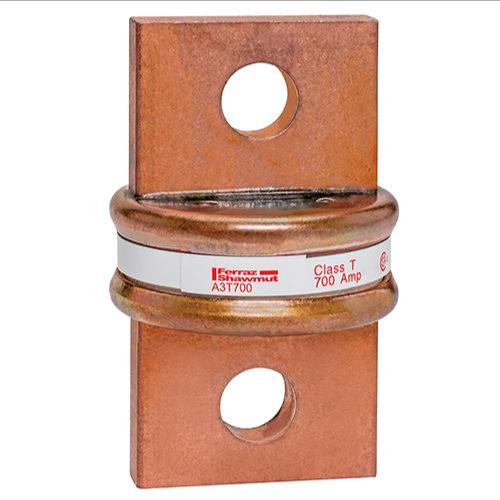

MERSEN FERRAZ A3T700 Fuse, Fast Acting, 300V, 700A, Class T
Item: CH4ULNModel: A3T700Cross Ref: 4ZAD5
7 In Stock
Ships within 2 days via
5.00% off
€817.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 300V AC |
| Ac/dc | AC/DC |
| Amps | 700A |
| Body Material | Glass, Melamine |
| Body Style | Blade |
| Body/insulating Material | GMG |
| Class | Class T |
| Compatible Fuse Block Series | 3Tfb, 6Tfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage | 160V DC |
| Dia. | 52.8 mm |
| Element | Single |
| Equivalent Brand And Series | BUSSMANN JJN, EDISON TJN, LITTELFUSE JLLN, MERSEN A3T |
| Equivalent Series | A3T, Jjn, Jlln, Tjn |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class T |
| Fuse Size | 3 3/8" x 2 1/16" |
| Interrupt Rating | 200 kA @ 300V AC, 50 kA @ 160V DC |
| Length | 85.9 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a3t1.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 300V |
| Rated Voltage Dc Ul | 160V |
| Rohs Compliant | Yes |
| Series | A3T Series |
| Speed | Very Fast Acting |
| Speed Characteristic | Fast Acting |
| Speed Type | Fast Acting |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 5.38 |
| Ship width (cm) | 5.38 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Fuse Size | Mounting | Connection/terminal Type | Body Style | Dc Voltage | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A3T1 | 1A | 10.4 mm | 7/8" x 13/32" | Clip | Ferrule | Cylindrical | 160V DC | Very Fast Acting | €32.56 | |
 |
A3T10 | 10A | 10.4 mm | 7/8" x 13/32" | Clip | Ferrule | Cylindrical | 160V DC | Very Fast Acting | €32.56 | |
 |
A3T100 | 100A | 20.6 mm | 2 5/32" x 13/16" | Bolted | Blade | Blade | 160V DC | Very Fast Acting | €47.68 | |
 |
A3T1000 | 1000A | 64 mm | 4" x 2 1/2" | Bolted | Blade | Blade | 160V DC | Very Fast Acting | €758.41 | |
 |
A3T110 | 110A | 26.9 mm | 2 7/16" x 1 1/16" | Bolted | Blade | Blade | 160V DC | Very Fast Acting | €76.93 | |
 |
A3T1200 | 1200A | 64 mm | 4" x 2 1/2" | Bolted | Blade | Blade | 160V DC | Very Fast Acting | €697.48 | |
 |
A3T15 | 15A | 10.4 mm | 7/8" x 13/32" | Clip | Ferrule | Cylindrical | 160V DC | Very Fast Acting | €31.93 |
