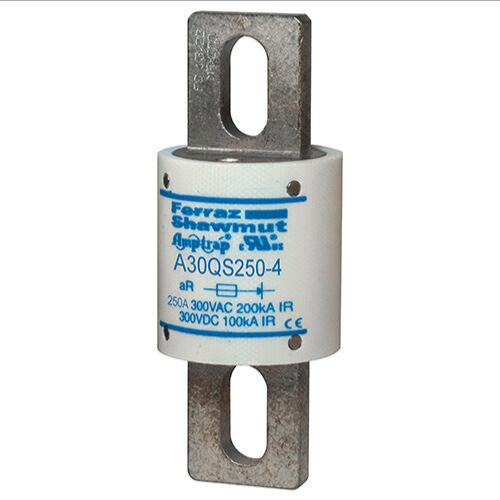

MERSEN FERRAZ A30QS250-4 Semiconductor Fuse, High Speed, 300V, 250A, aR Class
Item: CH4UJCModel: A30QS250-4Cross Ref: 6UVF4
7 In Stock
Ships within 2 days via
5.00% off
€200.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 52 kA |
| Ac Voltage | 300V AC |
| Ac/dc | AC/DC |
| Amps | 250A |
| Body Material | Fiberglass |
| Body Style | Bolt On |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dc Voltage | 300V DC |
| Dia. | 38.1 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Fwx, Littelfuse L25S, Mersen A30Qs |
| Equivalent Series | A30Qs, Fwx, L25S |
| Finish | TiN Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 3 27/32" x 1 1/2" |
| Interrupt Rating | 100 kA @ 300V DC, 200 kA @ 300V AC |
| Length | 97.5 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a30qs1000-128.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 300V |
| Rated Voltage Dc Ul | 300V |
| Rohs Compliant | Yes |
| Series | A30QS Series |
| Speed | Fast Acting |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 4.11 |
| Ship length (cm) | 9.75 |
| Ship width (cm) | 3.81 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Finish | Speed Type | Indication System Type | Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A30QS1000-128 | 1000A | 76.2 mm | Hockey Puck, Bolt In | 63 kA | Silver Plated | High Speed | - | - | €1,958.50 | |
 |
A30QS1000-128IL | 1000A | 88.9 mm | Hockey Puck, Bolt In | 52 kA | Silver Plated | High Speed | Il Indicator | - | €1,458.60 | |
 |
A30QS100-4 | 100A | 31 mm | Blade | 63 kA | TiN Plated | High Speed | - | 3 1/8" x 1 1/4" | €170.80 | |
|
A30QS100-4IL | 100A | 43.7 mm | Blade | 50 kA | TiN Plated | High Speed | Il Indicator | - | €343.20 | |
|
A30QS100-4TI | 100A | 31 mm | Blade | 63 kA | TiN Plated | High Speed | Ti Indicator | - | €212.62 | |
|
A30QS1200-128 | 1200A | 76.2 mm | Hockey Puck, Bolt In | 63 kA | Silver Plated | High Speed | - | - | €1,958.50 | |
 |
A30QS1200-128IL | 1200A | 88.9 mm | Hockey Puck, Bolt In | 52 kA | Silver Plated | High Speed | Il Indicator | - | €1,458.60 |
