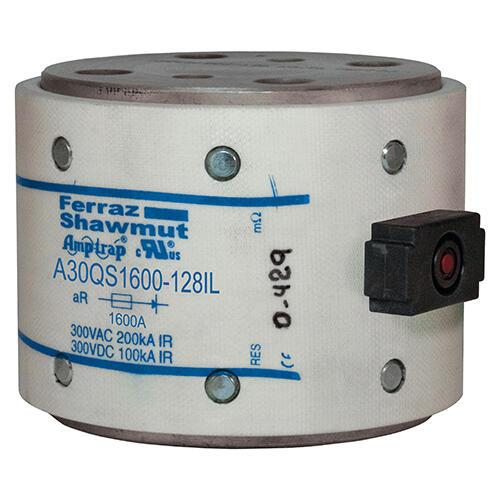

MERSEN FERRAZ A30QS1600-128IL Semiconductor Fuse, High Speed, 300V, 1600A, aR Class
Get it by Thursday, Aug 27
€2,587.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 47 kA |
| Ac Voltage | 300V AC |
| Ac/dc | AC/DC |
| Amps | 1600A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Hockey Puck, Bolt In |
| Dia. | 101.6 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Il Indicator |
| Length | 65.8 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a30qs1000-128.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 300V |
| Rated Voltage Dc Ul | 300V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 2.08 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.99 |
Product Details:
- IL Indicator
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Finish | Speed Type | Indication System Type | Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A30QS1000-128 | 1000A | 76.2 mm | Hockey Puck, Bolt In | 63 kA | Silver Plated | High Speed | - | - | €1,958.50 | |
 |
A30QS1000-128IL | 1000A | 88.9 mm | Hockey Puck, Bolt In | 52 kA | Silver Plated | High Speed | Il Indicator | - | €1,458.60 | |
 |
A30QS100-4 | 100A | 31 mm | Blade | 63 kA | TiN Plated | High Speed | - | 3 1/8" x 1 1/4" | €170.80 | |
|
A30QS100-4IL | 100A | 43.7 mm | Blade | 50 kA | TiN Plated | High Speed | Il Indicator | - | €343.20 | |
|
A30QS100-4TI | 100A | 31 mm | Blade | 63 kA | TiN Plated | High Speed | Ti Indicator | - | €212.62 | |
|
A30QS1200-128 | 1200A | 76.2 mm | Hockey Puck, Bolt In | 63 kA | Silver Plated | High Speed | - | - | €1,958.50 | |
 |
A30QS1200-128IL | 1200A | 88.9 mm | Hockey Puck, Bolt In | 52 kA | Silver Plated | High Speed | Il Indicator | - | €1,458.60 |
