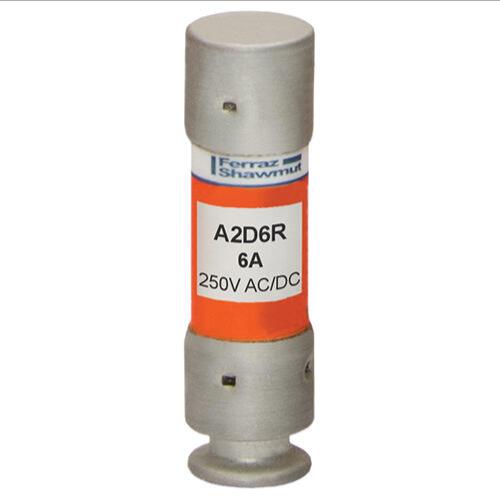

MERSEN FERRAZ A2D6R Time Delay Fuse, 250VAC, 6A, 1 Pole
Item: AG8LEKModel: A2D6RCross Ref: 4TAY2
7 In Stock
Ships within 2 days via
5.00% off
€18.13 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 250V AC |
| Ac/dc | AC |
| Amps | 6A |
| Amps Rating | 6A |
| Body Material | Polytube |
| Body Style | Cartridge Fuses |
| Body/insulating Material | Polytube |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 250V DC |
| Diameter | 14 mm |
| Finish | Tin Plated |
| Frame Type | A2D |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK1 |
| Fuse Type | Time Delay |
| Indicator Included | Yes |
| Interrupt Rating | 200 kA at 250V AC, 100 kA at 250V DC |
| Length | 51 mm |
| Mounting | Clip |
| Mounting Style | Holder |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-a2d100r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 250V AC |
| Rohs Compliant | Yes |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Termination Style | Clip |
| Type | Time Delay Class RK1 Fuse |
| Voltage | 250V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.42 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.42 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Body Style | Visual Indication | Diameter | Fuse Class | Dc Voltage Rating | Amps Rating | Speed | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2D100R | 100A | Blade | Indicating | 26.9 mm | Class RK1 | 250V AC | - | Time Delay | 1 | €64.06 | |
 |
A2D10R | 10A | Cylindrical | Indicating | 14.2 mm | Class RK1 | 250V AC | - | Time Delay | 1 | €26.80 | |
 |
A2D110R | 110A | Blade | Indicating | 39.6 mm | Class RK1 | 250V AC | - | Time Delay | 1 | €171.77 | |
 |
A2D125R | 125A | Blade | Indicating | 39.6 mm | Class RK1 | 250V AC | - | Time Delay | 1 | €170.80 | |
 |
A2D150R | 150A | Blade | Indicating | 39.6 mm | Class RK1 | 250V AC | - | Time Delay | 1 | €164.93 | |
 |
A2D15R | 15A | Cartridge Fuses | Indicating | 14 mm | Class RK1 | 250V DC | 15A | Time Delay | 1 | €18.03 | |
 |
A2D175R | 175A | - | - | 39.6 mm | Class RK1 | - | - | - | 1 | €136.82 |
