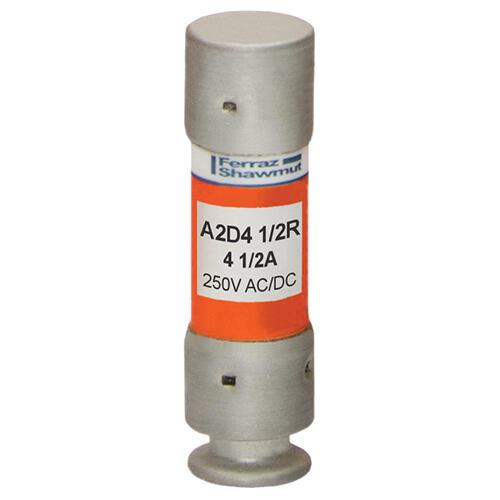

MERSEN FERRAZ A2D4-1/2R Time Delay Fuse, 250V, 4.5A, Class RK1
Item: CH4UCBModel: A2D4-1/2RCross Ref: 4TAX8
7 In Stock
Ships within 2 days via
5.00% off
€21.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 250V AC |
| Ac/dc | AC |
| Amps | 4.5A |
| Body Material | Polyester |
| Body Style | Cylindrical |
| Body/insulating Material | Polytube |
| Class | Class RK1 |
| Compatible Fuse Block Series | 2Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage | 250V AC |
| Dia. | 14.2 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Lpn-Rk-Spi, Littelfuse Llnrk-Id, Mersen A2D-R |
| Equivalent Series | A2D-R, Llnrk-Id, Lpn-Rk-Spi |
| Finish | TiN Plated |
| Fits Fuse Block Style | Rejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK1 |
| Fuse Size | 2" x 9/16" |
| Interrupt Rating | 100 kA @ 250V DC, 200 kA @ 250V AC |
| Length | 50.8 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a2d100r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 250V AC |
| Rohs Compliant | Yes |
| Series | A2D-R Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.23 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Dc Voltage | Connection/terminal Type | Fuse Class | Ac/dc | Body Style | Visual Indication | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2D100R | 100A | 26.9 mm | 250V AC | Blade | Class RK1 | AC/DC | Blade | Indicating | 1 | €64.06 | |
 |
A2D10R | 10A | 14.2 mm | 250V AC | Ferrule | Class RK1 | AC | Cylindrical | Indicating | 1 | €26.80 | |
 |
A2D110R | 110A | 39.6 mm | 250V AC | Blade | Class RK1 | AC/DC | Blade | Indicating | 1 | €189.30 | |
 |
A2D125R | 125A | 39.6 mm | 250V AC | Blade | Class RK1 | AC/DC | Blade | Indicating | 1 | €170.80 | |
 |
A2D150R | 150A | 39.6 mm | 250V AC | Blade | Class RK1 | AC/DC | Blade | Indicating | 1 | €181.76 | |
 |
A2D15R | 15A | 14 mm | 250V DC | Ferrule | Class RK1 | AC/DC | Cartridge Fuses | Indicating | 1 | €20.27 | |
 |
A2D175R | 175A | 39.6 mm | - | Blade | Class RK1 | AC/DC | - | - | 1 | €153.76 |
