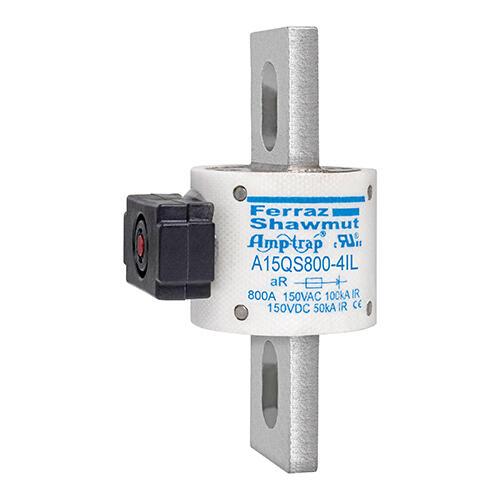

MERSEN FERRAZ A15QS800-4IL Semiconductor Fuse, High Speed, 150V, 800A, aR Class, Type 4
Get it by Tuesday, Sep 1
€463.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 150V AC |
| Ac/dc | AC/DC |
| Amps | 800A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dia. | 28.7 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Il Indicator |
| Length | 67.6 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a15qs1000-128.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 150V |
| Rated Voltage Dc Ul | 150V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 13.18 |
Product Details:
- IL Indicator
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Finish | Indication System Type | Fuse Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A15QS1000-128 | 1000A | 50.8 mm | Bolted | Hockey Puck, Bolt In | 200 kA | Silver Plated | - | - | 1 | €601.87 | |
 |
A15QS1000-128IL | 1000A | 50.8 mm | Bolted | Hockey Puck, Bolt In | 200 kA | Silver Plated | Il Indicator | - | 1 | €838.20 | |
 |
A15QS1000-4 | 1000A | 38.1 mm | Bolted | Blade | 200 kA | TiN Plated | - | - | 1 | €266.81 | |
 |
A15QS1000-4IL | 1000A | 28.7 mm | Bolted | Blade | 200 kA | TiN Plated | Il Indicator | - | 1 | €431.64 | |
 |
A15QS1000-4TI | 1000A | 38.1 mm | Bolted | Blade | 200 kA | TiN Plated | Ti Indicator | - | 1 | €348.36 | |
 |
A15QS100-4 | 100A | 28.7 mm | Bolted | Blade | 200 kA | TiN Plated | - | 2 3/4" x 1 1/8" | 1 | €89.35 | |
 |
A15QS100-4IL | 100A | 28.7 mm | Bolted | Blade | 200 kA | TiN Plated | Il Indicator | - | 1 | €267.96 |
