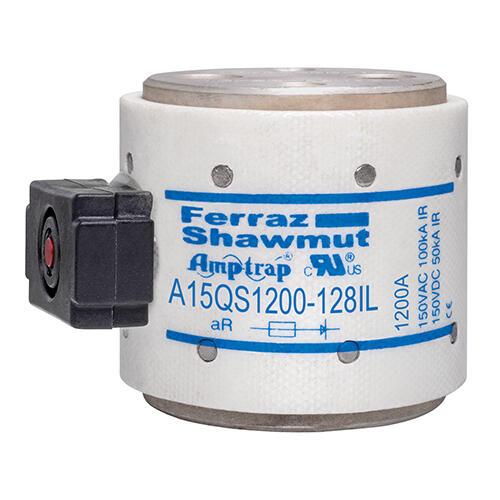

MERSEN FERRAZ A15QS1200-128IL Semiconductor Fuse, High Speed, 150V, 1200A, aR Class
Get it by Tuesday, Dec 23
€838.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 150V AC |
| Ac/dc | AC/DC |
| Amps | 1200A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Hockey Puck, Bolt In |
| Diameter | 50.8 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Il Indicator |
| Length | 47.8 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a15qs1000-128.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 150V |
| Rated Voltage Dc Ul | 150V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 13 |
| Ship width (cm) | 13 |
Product Details:
- IL Indicator
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Visual Indication | Body Style | Mounting | Body Material | Fuse Size | Dc Voltage Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A15QS1000-128 | 1000A | 50.8 mm | - | - | Bolted | GMG | - | - | 1 | €601.87 | |
 |
A15QS1000-128IL | 1000A | 50.8 mm | - | - | Bolted | GMG | - | - | 1 | €838.20 | |
 |
A15QS1000-4 | 1000A | 38.1 mm | - | - | Bolted | GMG | - | - | 1 | €219.42 | |
 |
A15QS1000-4IL | 1000A | 28.7 mm | - | - | Bolted | GMG | - | - | 1 | €431.64 | |
 |
A15QS1000-4TI | 1000A | 38.1 mm | - | - | Bolted | GMG | - | - | 1 | €348.36 | |
 |
A15QS100-4 | 100A | 28.7 mm | Non Indicating | Bolt On | Bolted | Fiberglass | 2 3/4" x 1 1/8" | 150V DC | 1 | €86.53 | |
 |
A15QS100-4IL | 100A | 28.7 mm | - | - | Bolted | GMG | - | - | 1 | €267.96 |
