MERSEN FERRAZ A155B2D0R0-200E Fuse, Medium Voltage, 15500V, 200A, E Rated, Bolt On Mount Striker
Get it by Friday, Aug 28
€7,062.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 15500V AC |
| Ac/dc | AC |
| Amps | 200A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Bolted |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Height | 193.8 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 637.8 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-9f62ked300.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 15500V |
| Speed Characteristic | E Rated |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 13.23 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 31.75 |
Documentation:
Product Variants
| Product | Model | Amps | Connection/terminal Type | Body/insulating Material | Finish | Height | Mounting | Frequency | Ac Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
9F62KED300 | 300A | Blade | Epoxy | TiN Plated | 346.7 mm | Bolted | 50/60 Hz | 15500V AC | €13,985.40 | |
|
A155B3D0R0-300E | 300A | Bolted | GMG | Silver Plated | 295.4 mm | Bolted | 50/60 Hz | 15500V AC | €10,883.40 | |
 |

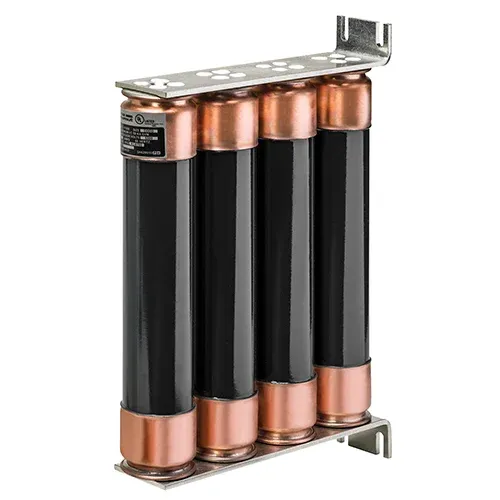

9F60XMH125 | 125A | Blade | Epoxy | TiN Plated | 346.7 mm | Bolted | 50/60 Hz | - | €11,035.73 | |
 |

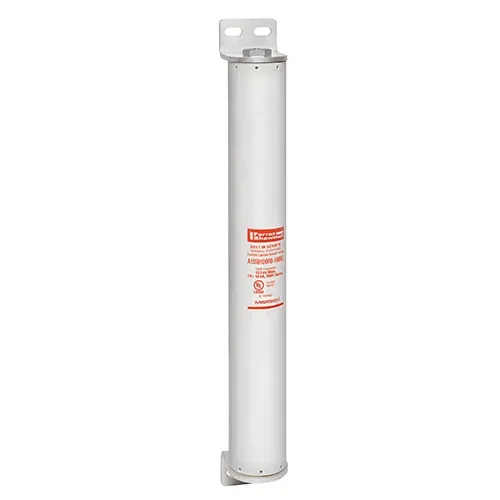

A155B1D0R0-100E | 100A | Bolted | GMG | Silver Plated | 92.2 mm | Bolted | 50/60 Hz | - | €5,342.96 | |
 |

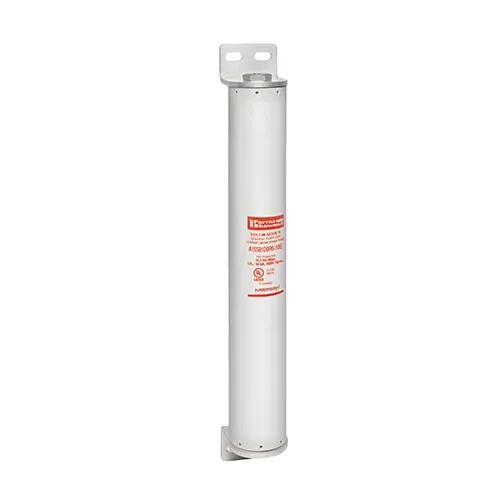

A155B1D0R0-10E | 10A | Bolted | GMG | Silver Plated | 92.2 mm | Bolted | 50/60 Hz | - | €1,781.93 | |
 |

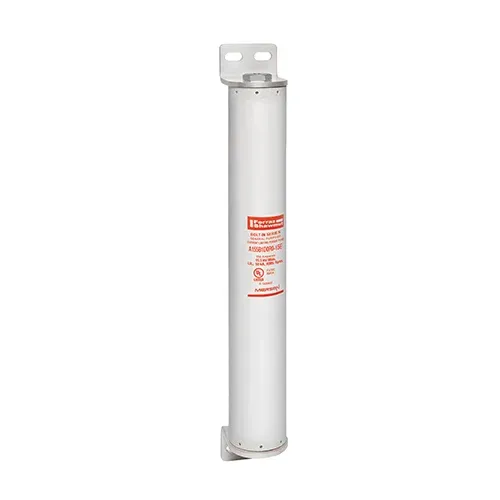

A155B1D0R0-15E | 15A | Bolted | GMG | Silver Plated | 92.2 mm | Bolted | 50/60 Hz | - | €2,024.84 | |
 |

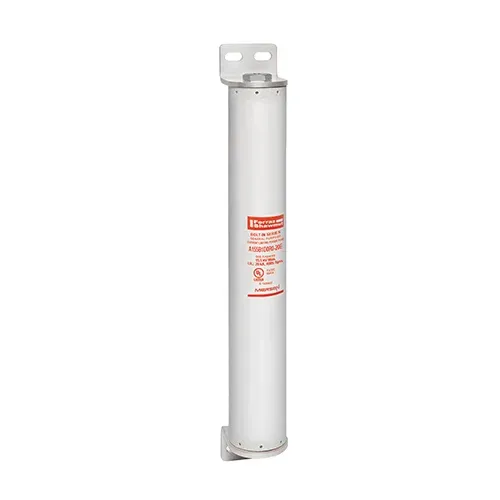

A155B1D0R0-20E | 20A | Bolted | GMG | Silver Plated | 92.2 mm | Bolted | 50/60 Hz | - | €4,070.16 |
