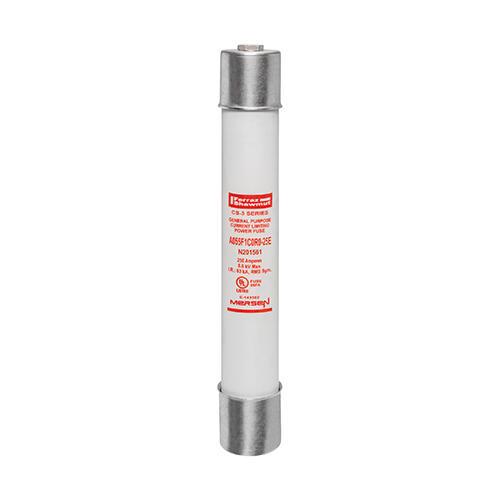

MERSEN FERRAZ A055F1C0R0-50E Fuse, Medium Voltage, 5500V, 50A, E Rated, Ferrule Mount Striker
Get it by Tuesday, Aug 25
€1,643.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 63 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Amps | 50A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 50.8 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 360.2 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60ced001.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
| Speed Characteristic | E Rated |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 10.16 |
Documentation:
Product Variants
| Model | Ac Voltage | Amps | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Ul | Mounting | Frequency | Connection/terminal Material | Connection/terminal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A055F1C0R0-10E | 5500V AC | 10A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,049.40 | |
| A055F1C0R0-15E | 5500V AC | 15A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,049.40 | |
| A055F1C0R0-20E | 5500V AC | 20A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,049.40 | |
| A055F1C0R0-25E | 5500V AC | 25A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,049.40 | |
| A055F1C0R0-30E | 5500V AC | 30A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,643.40 | |
| A055F1C0R0-40E | 5500V AC | 40A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,643.40 | |
| A055F1C0R0-5E | 5500V AC | 5A | 63 kA | 5500V | Clip | 50/60 Hz | Copper | Ferrule | €1,049.40 |
