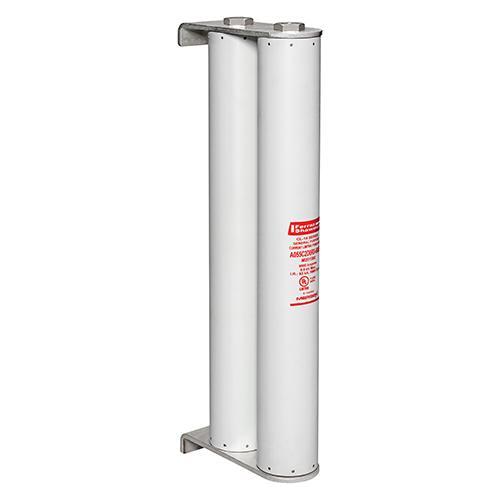

MERSEN FERRAZ A055C2D0R0-600E Fuse, Medium Voltage, 5500V, 600A, E Rated, Mount Striker
Get it by Tuesday, Sep 1
€9,669.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 63 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Amps | 600A |
| Body Material | Polytube |
| Body/insulating Material | Polytube |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Height | 201.7 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 579.4 mm |
| Mounting | Clip Lock |
| Product Datasheet | mersen-ferraz-a055c1d0r0-100e.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
| Speed Characteristic | E Rated |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 13.51 |
| Ship height (cm) | 7.92 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 20.32 |
Product Details:
- With Clip Lock
Documentation:
Product Variants
| Product | Model | Amps | Ac Voltage | Mounting | Frequency | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Connection/terminal Type | Rated Voltage Ac Ul | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A055C1D0R0-100E | 100A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €2,336.40 | |
 |
A055C1D0R0-10E | 10A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 | |
 |
A055C1D0R0-125E | 125A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |
A055C1D0R0-150E | 150A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |

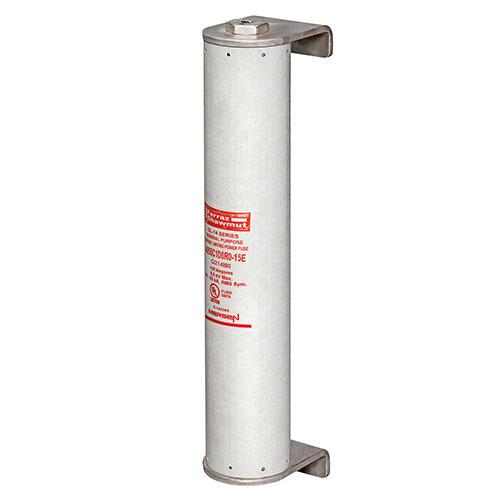

A055C1D0R0-15E | 15A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 | |
 |
A055C1D0R0-200E | 200A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |
A055C1D0R0-20E | 20A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 |
