MERSEN FERRAZ A051B1DAR0-2R Fuse, Medium Voltage, 5080V, 2R, R Rated, Bolt On Mount
Get it by Wednesday, Aug 26
€2,230.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 65 kA |
| Ac Voltage | 5080V AC |
| Ac/dc | AC |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Bolted |
| Design Details | 2R |
| Dia. | 76.2 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Height | 92.2 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 489 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a051b1dar0-12r.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5080V |
| Speed Characteristic | R Rated |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 71.42 |
| Ship width (cm) | 13.97 |
Product Details:
- Visual Indicator
Documentation:
Product Variants
| Product | Model | Ac Max. I R Breaking Capacity I1 | Height | Design Details | Ac Voltage | Mounting | Frequency | Connection/terminal Material | Connection/terminal Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

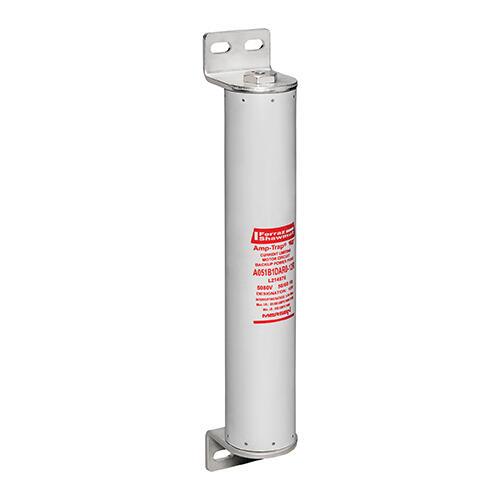

A051B1DAR0-12R | 65 kA | 92.2 mm | 12R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €3,128.40 | |
 |
A051B1DAR0-3R | 65 kA | 92.2 mm | 3R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €2,230.80 | |
 |
A051B1DAR0-4R | 65 kA | 92.2 mm | 4R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €2,230.80 | |
 |
A051B1DAR0-6R | 65 kA | 92.2 mm | 6R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €2,798.40 | |
 |
A051B1DAR0-9R | 65 kA | 92.2 mm | 9R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €2,983.20 | |
 |
A051B2DAR0-18R | 65 kA | 193.8 mm | 18R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €5,695.80 | |
 |

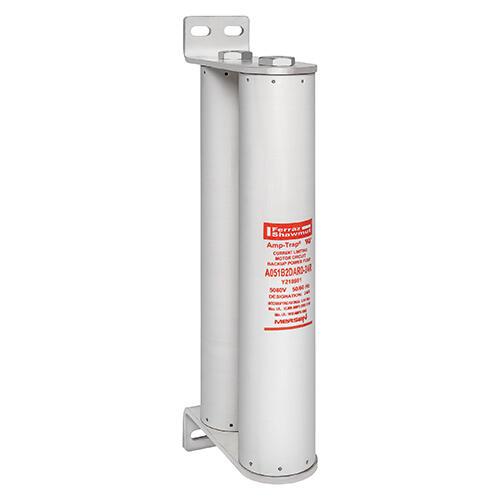

A051B2DAR0-24R | 65 kA | 193.8 mm | 24R | 5080V AC | Bolted | 50/60 Hz | Copper | Bolted | 1 | €5,695.80 |
