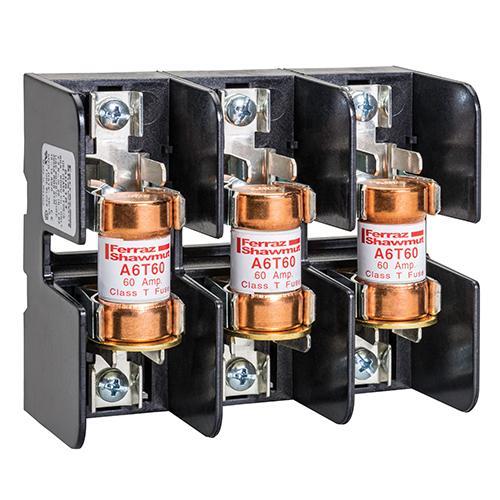

MERSEN FERRAZ 60658T Fuse Base, 600V, 60A, Class T, 3 Pole, Tin Plated, Copper Box
Get it by Tuesday, Dec 23
€132.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Frequency | 50/60 Hz |
| Fuse Class | Class T |
| Fuse Installation Method | Clip In |
| Height | 55.9 mm |
| Installation Mounting | Screw Mount, Din Rail |
| Length | 99.1 mm |
| Max. Fuse Rating | 60A |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-30305t.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Torque Rating | 5.084 N-m |
| Width | 116.8 mm |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 27.13 |
| Ship width (cm) | 12.22 |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Mounting Style | Height | Body Material | Amps | Max. Fuse Rating | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60305T | Adder | - | - | 39.6 mm | GFPC | 30A | 30A | - | 10 | €339.64 | |
 |
60306T | 1 | - | - | 39.6 mm | GFPC | 30A | 30A | - | 1 | €28.27 | |
 |
60307T | 2 | 0-30A | Bolt-Down, Din Rail | 39.6 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | 1 | €45.38 | |
|
60308T | 3 | 0-30A | Bolt-Down, Din Rail | 39.6 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | 1 | €63.10 | |
|
60315T | Adder | - | - | 39.6 mm | GFPC | 30A | 30A | - | 10 | €283.66 | |
|
60316T | 1 | - | - | 39.6 mm | GFPC | 30A | 30A | - | 10 | €324.32 | |
|
60317T | 2 | - | - | 39.6 mm | GFPC | 30A | 30A | - | 5 | €286.97 |
