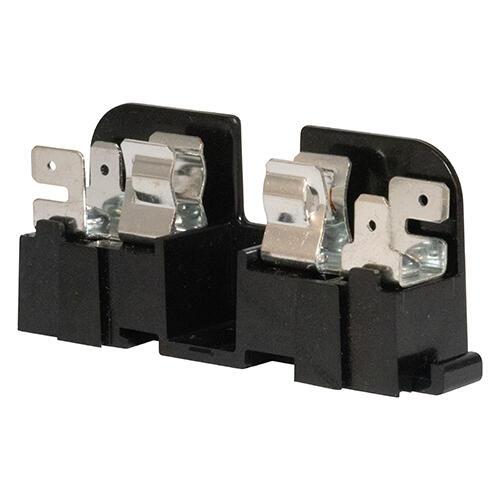

MERSEN FERRAZ 40211G Fuse Base, 600V, 20A, Class G, 1 Pole, Tin Plated, Copper Screw
Item: CH4RBRModel: 40211GCross Ref: 5LDH1
7 In Stock
Ships within 2 days via
10.00% off
€16.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 20A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Frequency | 50/60 Hz |
| Fuse Class | Class G |
| Fuse Installation Method | Clip In |
| Height | 36.8 mm |
| Installation Mounting | Screw Mount, Din Rail |
| Length | 77.5 mm |
| Max. Fuse Rating | 20A |
| Number Of Poles | 1 |
| Product Datasheet | mersen-ferraz-40110g.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 100 kA |
| Torque Rating | 2.26 N-m |
| Width | 21.6 mm |
| Wire Material | Copper |
| Wiring Range | #10 to 14 |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 7.77 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 7.92 |
| Country of Origin | MX |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Voltage Rating | Height | Amps | Max. Fuse Rating | Fuse Ul Class | Connector Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40110G | Adder | - | - | 36.8 mm | 15A | 15A | - | - | 1 | €20.87 | |
 |
40111G | 1 | 0-15A | 600V AC/DC | 36.8 mm | 15A | 15A | Class G | Screw With Quick Connect | 1 | €18.91 | |
 |
40112G | 2 | 0-15A | 600V AC/DC | 36.8 mm | 15A | 15A | Class G | Screw With Quick Connect | 1 | €34.79 | |
 |
40113G | 3 | 0-15A | 600V AC/DC | 36.8 mm | 15A | 15A | Class G | Screw With Quick Connect | 1 | €51.15 | |
 |
40120G | Adder | - | - | 36.8 mm | 15A | 15A | - | - | 10 | €340.29 | |
|
40121G | 1 | - | - | 36.8 mm | 15A | 15A | - | - | 1 | €41.19 | |
|
40122G | 2 | - | - | 36.8 mm | 15A | 15A | - | - | 5 | €321.03 |
