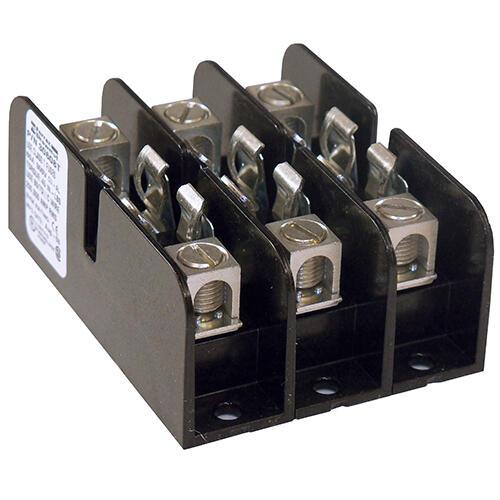

MERSEN FERRAZ 30608T Fuse Base, 300V, 60A, Class T, 3 Pole, Tin Plated, Aluminium Box
Item: CH4QZVModel: 30608TCross Ref: 5LDG2
7 In Stock
Ships within 2 days via
10.00% off
€57.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 300V AC |
| Ac/dc | AC/DC |
| Amp Range | 31-60A |
| Amps | 60A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug |
| Features | Unique Adder Block Design |
| Fits Fuse Type | Industrial |
| For Fuse Size | 7/8" x 9/16" |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class T |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | Class T |
| Height | 37.3 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 85.6 mm |
| Max. Fuse Rating | 60A |
| Mounting Style | Bolt Down |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-30305t.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 300V |
| Rated Voltage Dc Ul | 300V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Spring Reinforced Clip | Yes |
| Torque Rating | 5.084 N-m |
| Visual Indication | Non Indicating |
| Voltage Rating | 300V AC/DC |
| Width | 47 mm |
| Wire Range | 14 AWG to 2 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 14.27 |
| Ship length (cm) | 20.17 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Height | Body Material | Amps | Max. Fuse Rating | Wire Range | Fuse Ul Class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
30305T | Adder | - | 37.3 mm | GFPC | 30A | 30A | - | - | 5 | €172.98 | |
 |
30306T | 1 | - | 37.3 mm | GFPC | 30A | 30A | - | - | 5 | €185.53 | |
 |
30307T | 2 | 0-30A | 37.3 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | Class T | 1 | €45.38 | |
 |
30308T | 3 | 0-30A | 37.3 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | Class T | 1 | €91.36 | |
 |
30309T | 4 | - | 37.3 mm | GFPC | 30A | 30A | - | - | 1 | €134.29 | |
|
30315T | Adder | - | 37.3 mm | GFPC | 30A | 30A | - | - | 5 | €143.22 | |
 |
30316T | 1 | - | 37.3 mm | GFPC | 30A | 30A | - | - | 5 | €149.22 |
