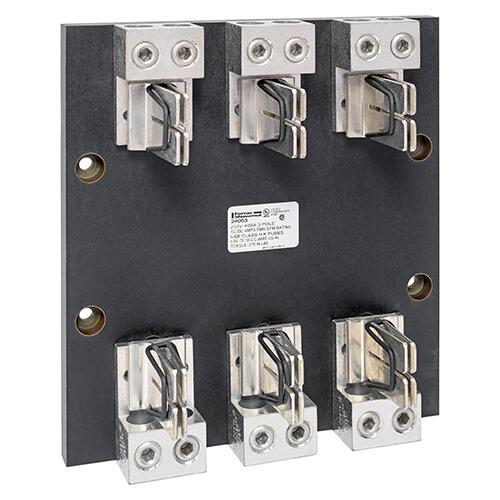

MERSEN FERRAZ 24063 Fuse Base, 250V, 400A Class H And K, 3 Pole, Tin Plated, Copper Box
Get it by Tuesday, Aug 18
€2,840.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 250V AC |
| Ac/dc | AC/DC |
| Amps | 400A |
| Body Material | Phenolic |
| Body/insulating Material | Phenolic |
| Frequency | 50/60 Hz |
| Fuse Class | Class H, Class K |
| Fuse Class | Class H/K |
| Fuse Installation Method | Clip In |
| Height | 91.9 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 292.1 mm |
| Max. Fuse Rating | 400A |
| No. Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 250V AC |
| Rated Voltage Dc Ul | 250V DC |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 50 kA |
| Torque | 31.071 N-m |
| Width | 266.7 mm |
Shipping Info:
| Ship weight (kg) | 4.77 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 30.48 |
Product Details:
- With In Line Clip
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Body/insulating Material | Torque | Max. Fuse Rating | Ac Voltage Rating | For Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20300 | 30A | 35.1 mm | Adder | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | - | €21.38 | |
 |
20301 | 30A | 35.1 mm | 1 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €24.11 | |
|
20302 | 30A | 35.1 mm | 2 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €48.86 | |
|
20303 | 30A | 35.1 mm | 3 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €64.06 | |
 |
20305 | 30A | 35.1 mm | Adder | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | - | €22.73 | |
 |
20306 | 30A | 35.1 mm | 1 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €36.34 | |
 |
20307 | 30A | 35.1 mm | 2 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €60.19 |
