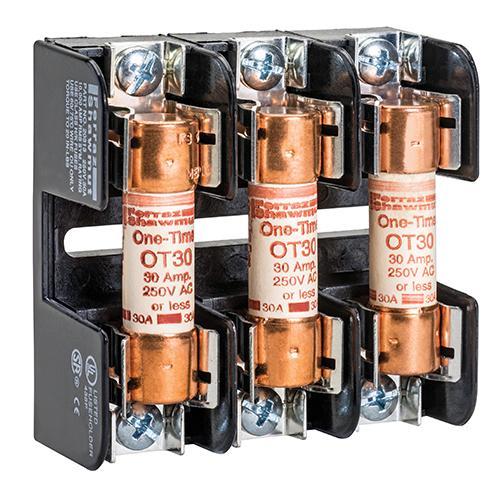

MERSEN FERRAZ 20358 Fuse Base, 250V, 30A Class H And K, 3 Pole, Tin Plated, Copper Box
Item: CH4QTCModel: 20358Cross Ref: 5LCY8
7 In Stock
Ships within 2 days via
10.00% off
€67.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 250V AC |
| Ac/dc | AC/DC |
| Amp Range | 0-30A |
| Amps | 30A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Box Lug (Cu) |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2" x 9/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class H/K |
| Fuse Class | Class H, Class K |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | H, K5 |
| Height | 35.1 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 76.2 mm |
| Max. Fuse Rating | 30A |
| Mounting Style | Bolt Down |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 50 kA |
| Spring Reinforced Clip | No |
| Torque Rating | 3.954 N-m |
| Visual Indication | Non Indicating |
| Voltage Rating | 250V AC/DC |
| Width | 76.2 mm |
| Wire Range | 14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 26.97 |
| Ship width (cm) | 7.92 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Connector Type | Height | Body Material | Amps | Max. Fuse Rating | Wire Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20300 | Adder | - | - | 35.1 mm | GFPC | 30A | 30A | - | €21.38 | |
 |
20301 | 1 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €23.65 | |
|
20302 | 2 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €48.22 | |
|
20303 | 3 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €56.32 | |
 |
20305 | Adder | - | - | 35.1 mm | GFPC | 30A | - | - | €22.73 | |
 |
20306 | 1 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | - | 14 AWG to 2 AWG | €21.41 | |
 |
20307 | 2 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €61.18 |
