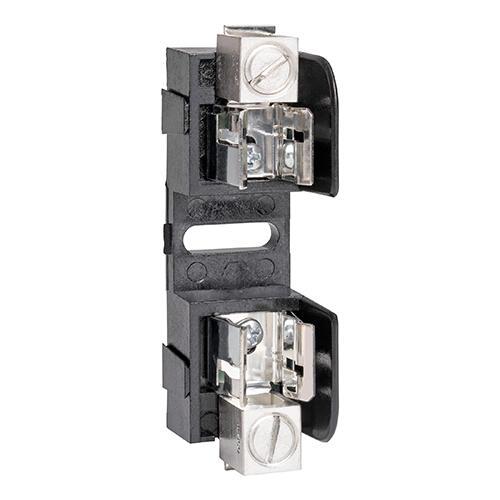

MERSEN FERRAZ 20325 Fuse Base, Adder, 250V, 30A Class H And K, Tin Plated, Copper Pressure Plate
Get it by Tuesday, Feb 17
€24.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 250V AC |
| Ac/dc | AC/DC |
| Amps | 30A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Frequency | 50/60 Hz |
| Fuse Class | Class H, Class K |
| Fuse Class | Class H/K |
| Fuse Installation Method | Clip In |
| Height | 35.1 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 76.2 mm |
| Max. Fuse Rating | 30A |
| Number Of Poles | Adder |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 50 kA |
| Torque Rating | 2.26 N-m |
| Width | 23.1 mm |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 7.92 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 9.19 |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amp Range | Connector Type | Height | Body Material | Amps | Max. Fuse Rating | Wire Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20300 | Adder | - | - | 35.1 mm | GFPC | 30A | 30A | - | €21.38 | |
 |
20301 | 1 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €22.10 | |
|
20302 | 2 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €44.78 | |
|
20303 | 3 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €58.73 | |
 |
20305 | Adder | - | - | 35.1 mm | GFPC | 30A | - | - | €22.73 | |
 |
20306 | 1 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | - | 14 AWG to 2 AWG | €33.31 | |
 |
20307 | 2 | 0-30A | Box Lug | 35.1 mm | GFPC | 30A | 30A | 14 AWG to 2 AWG | €55.17 |
