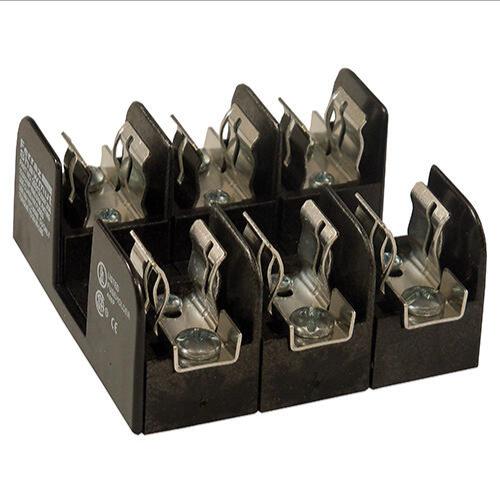

MERSEN FERRAZ 20313 Fuse Base, 250V, 30A Class H And K, 3 Pole, Tin Plated, Copper Screw
Item: CH4QRBModel: 20313Cross Ref: 5LCY1
7 In Stock
Ships within 2 days via
5.00% off
€50.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 250V AC |
| Ac/dc | AC/DC |
| Amps | 0-30A , 30A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Connector Type | Screw |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2" x 9/16" Dia. |
| Frequency | 50/60 Hz |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Class | Class H/K |
| Fuse Class | Class H, Class K |
| Fuse Installation Method | Clip In |
| Fuse Ul Class | H, K5 |
| Height | 35.1 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 76.2 mm |
| Max. Fuse Rating | 30A |
| Mounting Style | Bolt Down |
| No. Of Poles | 3 |
| Product Datasheet | mersen-ferraz-20300.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 250V AC |
| Rated Voltage Dc Ul | 250V DC |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 50 kA |
| Spring Reinforced Clip | No |
| Torque | 2.26 N-m |
| Visual Indication | Non Indicating |
| Voltage | 250V AC/DC |
| Width | 76.2 mm |
| Wire | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Body/insulating Material | Torque | Max. Fuse Rating | Ac Voltage Rating | For Fuse Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20300 | 30A | 35.1 mm | Adder | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | - | €21.38 | |
 |
20301 | 30A | 35.1 mm | 1 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €24.11 | |
|
20302 | 30A | 35.1 mm | 2 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €48.86 | |
|
20303 | 30A | 35.1 mm | 3 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €64.06 | |
 |
20305 | 30A | 35.1 mm | Adder | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | - | €22.73 | |
 |
20306 | 30A | 35.1 mm | 1 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €36.34 | |
 |
20307 | 30A | 35.1 mm | 2 | Glass Filled Polycarbonate | 3.954 N-m | 30A | 250V AC | 2" x 9/16" Dia. | €60.19 |
