MEPCO MDS-4 Steam Trap, 1/2 Inch Size FNPT Connections, 2 11/16 Inch Size End to End Length
Item: CT2ZDGModel: MDS-4Cross Ref: 405Y83
7 In Stock
Ships within 2 days via
10.00% off
€488.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Steam Trap |
| Actuator Material | Stainless Steel |
| Application | Steam |
| Body Material | Stainless Steel |
| Cap Material | Stainless Steel |
| Condensate Capacity | 1200 lbs./hr. |
| Configuration | In-Line |
| Disc Material | Stainless Steel |
| Distance Between Inlet And Outlet Port | 2 11/16" |
| Downstream Pressure Range | 0 psi to 595 psi |
| End To End Length | 2 11/16" |
| Includes Strainer | Strainer Included |
| Installation Orientation | Horizontal |
| Max. Operating Pressure | 600 psi |
| Max. Temp. | 800°F |
| Npt Inlet | 1/2" |
| Npt Outlet | 1/2" |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 800°F |
| Overall Length | 2 11/16" |
| Pipe Configuration | Straight |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Port Connection Type | NPT |
| Port Types Included | Inlet, Outlet |
| Pressure Air Vent | Releases Air And Non-Condensable Gases That Adversely Affect The Heat Transfer Of A Steam System |
| Resistance Properties | Corrosion Resistant |
| Steam Trap Type | Thermodynamic |
| Trap Position | Horizontal |
| Type | Disc |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Condensate Capacity | Distance Between Inlet And Outlet Port | Steam Trap Type | Body Material | Max. Operating Pressure | Type | Configuration | Includes Strainer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

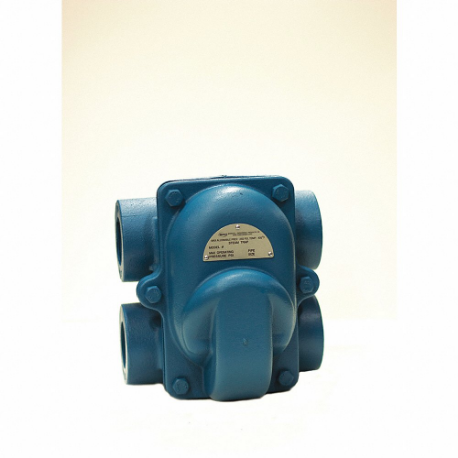

46-715G | 11750 lbs./hr. | 7" | Float and Thermostatic | Cast Iron | 15 psi | Float And Thermostatic | H Pattern | Strainer Not Included | €769.22 | |
 |
IB12-3-200G | 1605 lbs./hr. | 6 1/2" | Inverted Bucket | - | 25 psi | Inverted Bucket | In-Line | Strainer Not Included | €365.01 | |
|
IB12-3-125G | 2020 lbs./hr. | 6 1/2" | Inverted Bucket | Cast Iron | 25 psi | Inverted Bucket | In-Line | Strainer Not Included | €365.01 | |
 |

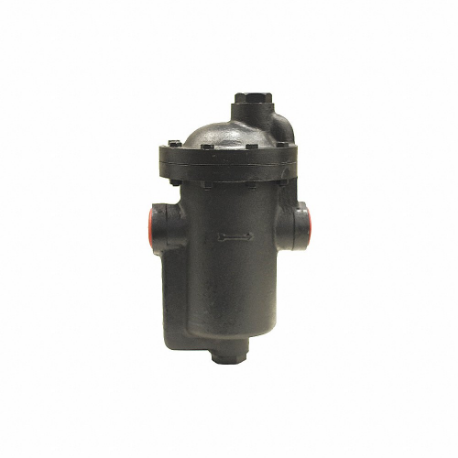

IB15-6-125 | 10910 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 125 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,070.63 | |
|
IB15-6-250 | 7000 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 250 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,224.08 | |
|
IB15-6-30 | 9825 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 30 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,070.63 | |
 |
44-715G | 4075 lbs./hr. | 5 3/8" | Float and Thermostatic | Cast Iron | 15 psi | Float And Thermostatic | H Pattern | Strainer Not Included | €405.51 |
