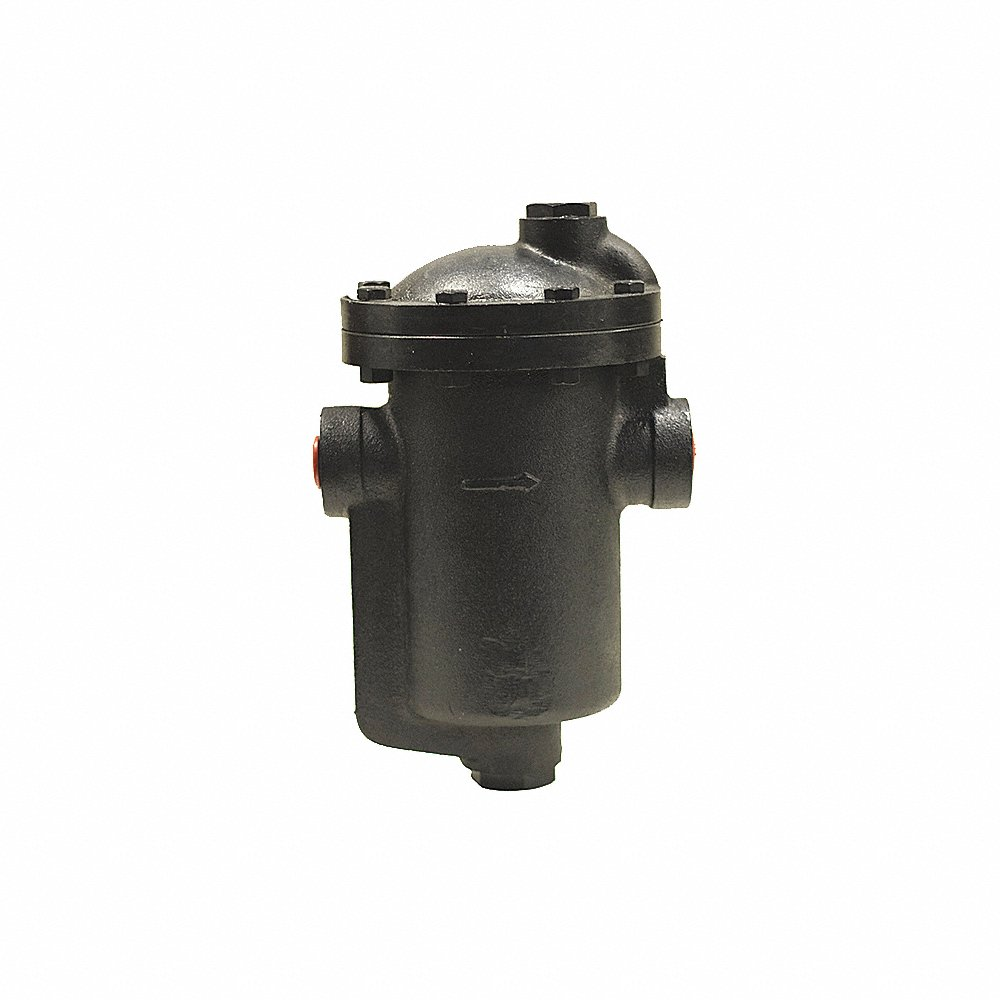

MEPCO IB14--5-30 Steam Trap, 1 1/4 Inch Size FNPT Connections, 9 Inch Size End to End Length
Get it by Friday, Dec 19
10.00% off
€1,431.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Steam Trap |
| Allowable Temperature - Minimum | 35°F |
| Application | Blast Coils, Water Heaters, Laundry, Steam Kettles |
| Body Material | Cast Iron |
| Bolt Grade | Grade 5, Grade 7 |
| Condensate Capacity | 6810 lbs./hr. |
| Configuration | In-Line |
| Disc Material | Stainless Steel |
| Distance Between Inlet And Outlet Port | 9" |
| Downstream Pressure Range | 0 psi to 25 psi |
| End To End Length | 9" |
| Float Material | Stainless Steel |
| Fnpt Size | 1 1/4" |
| Gasket Material | Non Asbestos Fiber |
| Includes Air Vent | Air Vent Included |
| Includes Strainer | Strainer Not Included |
| Installation Orientation | Horizontal |
| Lever Assembly Material | Stainless Steel |
| Manufacturer Series | IB |
| Max. Condensate Capacity | 6810 lbs./hr. |
| Max. Operating Pressure | 30 psi |
| Max. Operating Temperature | 450°F |
| Max. Temp. | 450°F |
| Npt Inlet | 1 1/4" |
| Npt Outlet | 1" |
| Npt Port | 1 1/4" |
| Number Of Ports | 2 |
| Orifice Diameter | 1/2" |
| Overall Depth | 14" |
| Overall Length | 9" |
| Pipe Configuration | Straight |
| Port Connection Gender | Female |
| Port Connection Size | 1 1/4" |
| Port Connection Type | NPT |
| Pressure Air Vent | Releases Air And Non-Condensable Gases That Adversely Affect The Heat Transfer Of A Steam System |
| Resistance Properties | Corrosion Resistant |
| Steam Trap Type | Inverted Bucket |
| Trap Position | Horizontal |
| Type | Inverted Bucket |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Condensate Capacity | Distance Between Inlet And Outlet Port | Steam Trap Type | Body Material | Max. Operating Pressure | Type | Configuration | Includes Strainer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
46-715G | 11750 lbs./hr. | 7" | Float and Thermostatic | Cast Iron | 15 psi | Float And Thermostatic | H Pattern | Strainer Not Included | €769.22 | |
 |
IB12-3-200G | 1605 lbs./hr. | 6 1/2" | Inverted Bucket | - | 25 psi | Inverted Bucket | In-Line | Strainer Not Included | €365.01 | |
|
IB12-3-125G | 2020 lbs./hr. | 6 1/2" | Inverted Bucket | Cast Iron | 25 psi | Inverted Bucket | In-Line | Strainer Not Included | €365.01 | |
 |
IB15-6-125 | 10910 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 125 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,070.63 | |
|
IB15-6-250 | 7000 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 250 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,224.08 | |
|
IB15-6-30 | 9825 lbs./hr. | 10 1/4" | Inverted Bucket | Cast Iron | 30 psi | Inverted Bucket | In-Line | Strainer Not Included | €2,070.63 | |
 |
44-715G | 4075 lbs./hr. | 5 3/8" | Float and Thermostatic | Cast Iron | 15 psi | Float And Thermostatic | H Pattern | Strainer Not Included | €405.51 |
