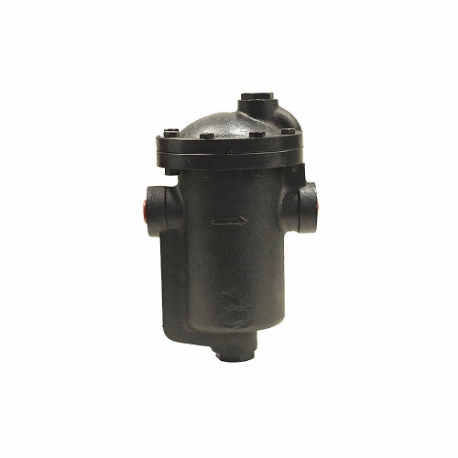

MEPCO IB14-5-250 Steam Trap, 1 1/4 Inch Size FNPT Connections, 9 Inch Size End to End Length
Get it by Tuesday, Aug 25
13.00% off
€1,007.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Steam Trap |
| Application | Blast Coils, Water Heaters, Laundry, Steam Kettles |
| Body Material | Cast Iron |
| Bolt Grade | Grade 5, Grade 7 |
| Condensate Capacity | 5725 lbs./hr. |
| Configuration | In-Line |
| Disc Material | Stainless Steel |
| Distance Between Inlet And Outlet Port | 9" |
| Downstream Pressure Range | 0 psi to 245 psi |
| End To End Length | 9" |
| Float Material | Stainless Steel |
| Fnpt Size | 1 1/4" |
| Gasket Material | Non Asbestos Fiber |
| Included Air Vent | Air Vent Included |
| Included Strainer | Strainer Not Included |
| Installation Orientation | Horizontal |
| Lever Assembly Material | Stainless Steel |
| Manufacturer Series | IB |
| Max. Condensate Capacity | 5725 lbs./hr. |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 450°F |
| Max. Temp. | 450°F |
| Min. Allowable Temp. | 35°F |
| No. Of Ports | 2 |
| Npt Inlet | 1 1/4" |
| Npt Outlet | 1 1/4" |
| Npt Port | 1 1/4" |
| Orifice Dia. | 1/4" |
| Overall Depth | 14" |
| Overall Length | 9" |
| Pipe Configuration | Straight |
| Port Connection Gender | Female |
| Port Connection Size | 1 1/4" |
| Port Connection Type | NPT |
| Pressure Air Vent | Releases Air And Non-Condensable Gases That Adversely Affect The Heat Transfer Of A Steam System |
| Resistance Properties | Corrosion Resistant |
| Steam Trap Type | Inverted Bucket |
| Trap Position | Horizontal |
| Type | Inverted Bucket |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Condensate Capacity | Max. Operating Pressure | Distance Between Inlet And Outlet Port | Steam Trap Type | Body Material | Max. Operating Temp. | Type | Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
46-715G | 11750 lbs./hr. | 15 psi | 7" | Float and Thermostatic | Cast Iron | - | Float And Thermostatic | H Pattern | €707.68 | |
 |
IB12-3-200G | 1605 lbs./hr. | 25 psi | 6 1/2" | Inverted Bucket | - | - | Inverted Bucket | In-Line | €280.33 | |
|
IB12-3-125G | 2020 lbs./hr. | 25 psi | 6 1/2" | Inverted Bucket | Cast Iron | 450°F | Inverted Bucket | In-Line | €280.33 | |
 |
IB15-6-125 | 10910 lbs./hr. | 125 psi | 10 1/4" | Inverted Bucket | Cast Iron | 450°F | Inverted Bucket | In-Line | €1,557.12 | |
|
IB15-6-250 | 7000 lbs./hr. | 250 psi | 10 1/4" | Inverted Bucket | Cast Iron | 450°F | Inverted Bucket | In-Line | €1,672.52 | |
|
IB15-6-30 | 9825 lbs./hr. | 30 psi | 10 1/4" | Inverted Bucket | Cast Iron | 450°F | Inverted Bucket | In-Line | €1,447.79 | |
 |
44-715G | 4075 lbs./hr. | 15 psi | 5 3/8" | Float and Thermostatic | Cast Iron | - | Float And Thermostatic | H Pattern | €339.32 |
