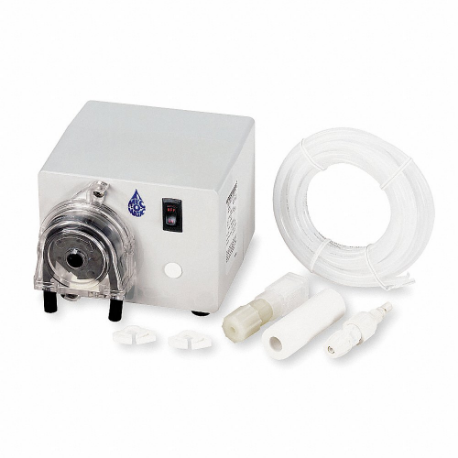

MEC-O-MATIC UVSP12XRLLAUG19 Chemical Metering Pump, 12 gpd
Item: CT2VKKModel: UVSP12XRLLAUG19Cross Ref: 20LX55
7 In Stock
Ships within 2 days via
€756.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chemical Metering Pump |
| Body Material | Chemical Resistant Resin |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Oils, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Degassing Valve Included | Yes |
| Discharge Connection Size | 3/8" |
| Discharge Connection Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Fitting Material | PVC |
| Flow Rate Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Head And Fitting Material | Resin |
| Head Material | Polycarbonate |
| Height | 5 5/8" |
| Housing Material | Resin |
| Included | Injection Point Fitting, Strainer, Tube |
| Intake Connection Size | 3/16" |
| Intake Connection Type | Tube |
| Length | 7 5/8" |
| Material | Neoprene |
| Max. Ambient Temp. | 104°F |
| Max. Discharge Pressure | 25 psi |
| Max. Flow | 12 GPD |
| Max. Flow Rate | 12 GPD |
| Max. Hp | 1/60 hp |
| Max. Media Temp. | 104°F |
| Max. Viscosity | 300 cPS |
| Media Temp. | 104°F |
| Metering Reproducibility | -2% to +2% |
| Motor Hp | 1/60 hp |
| Motor Type | DC |
| Nameplate Voltage | 120V AC |
| No. Of Feeds | 1 |
| Number Of Feeds | 1 |
| Overall Height | 5.7" |
| Overall Length | 6.9" |
| Overall Width | 7 3/5" |
| Phase | 1 |
| Pressure | 25 psi |
| Priming | Self Priming |
| Pump Type | Peristaltic |
| Reproducibility | -2.0% to +2.0% |
| Reproducibility | -2% to +2% |
| Self Priming | Yes |
| Suction Lift | 4 ft. |
| Tubing Material | Neoprene |
| Tubing Material-peristaltic Pumps | Norprene |
| Width | 6 7/8" |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 17.53 |
| Ship width (cm) | 19.3 |
| Country of Origin | US |
