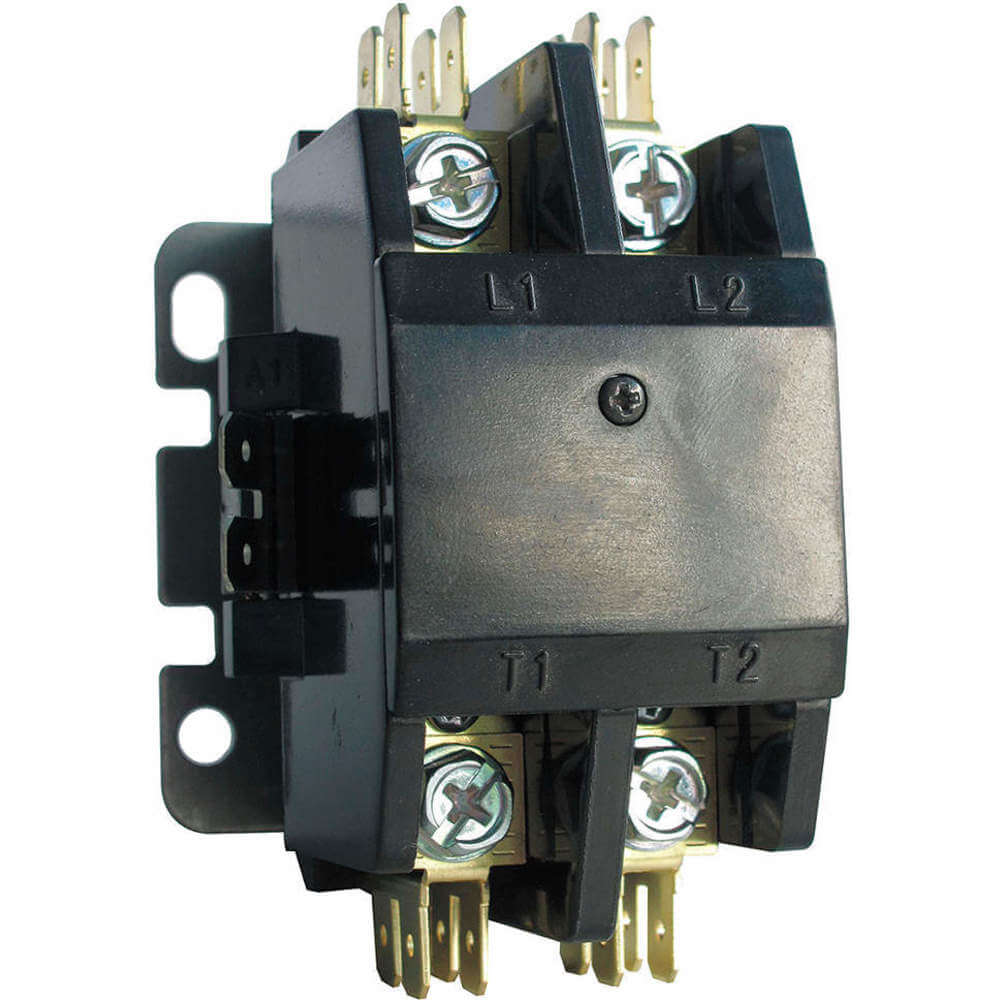

DAYTON 6GNP7 Contactor Dp 25a 2p 24vac
Item: AE8YRRModel: 6GNP7
7 In Stock
Ships within 2 days via
10.00% off
€47.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Action Type | Non Reversing |
| Coil Voltage | 24V AC |
| Contact Material | Silver Cadmium Oxide |
| Contactor Frame Size | Standard |
| Contactor Type | Definite Purpose |
| Depth | 3.19" |
| Electrical Operating Durability | 200000 |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Fluorescent Lighting Amps Rating | Not Applicable |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 35A |
| Full Load Inductive Amps | 25A |
| Height | 2 8/25" |
| Horsepower @ Single Phase | 3 hp |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | Not Rated |
| Horsepower @ Three Phase - 600v Ac | Not Rated |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 240v | Not Rated |
| Hp @ 3 Phase - 480v | Not Rated |
| Includes | Not Applicable |
| Inductive Full Load Amps | 25A |
| Input Control Type | Not Applicable |
| Ip Rating | Not Applicable |
| Led Lighting Current Rating | Not Applicable |
| Locked Rotor Load | 100A @ 600V AC, 125A @ 480V AC, 150A @ 240/277V AC |
| Main Pole Contact Form | 2NO |
| Maximum Operating Temperature | 158°F |
| Maximum Voltage Rating | 600V AC |
| Mechanical Operating Durability | 500000 |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Dia. | Not Applicable |
| Mounting Hole Distance | 1.63" |
| Mounting Hole Distance - Height | 1.63" |
| Mounting Hole Distance - Width | 1.61" |
| Mounting Hole Width | 1.61" |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Terminals | 6 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 2 |
| Number Of Poles | 2 |
| Overall Depth | 3.19" |
| Overall Height | 2 8/25" |
| Overall Width | 1.97" |
| Phase | Single |
| Resistance Properties | Not Applicable |
| Resistive Full Load Amps | 35A |
| Response Time | 20 ms |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Status Indicator | Mechanical Flag |
| Terminal Connection Type | Screw Terminals |
| Tungsten Lighting Current Rating | Not Applicable |
| Width | 1.97" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.86 |
| HS code | 8536410045 |
| Country of Origin | CN |
Product Variants
| Model | Number Of Poles | Hp @ 1 Phase - 240v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Hp @ 1 Phase - 120v | Inductive Full Load Amps | Resistive Full Load Amps | Coil Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 6GNP6 | 2 | 3 hp | Not Rated | Not Rated | 2 hp | 25A | 35A | 208/240V AC | €52.93 | |
| 6GNP8 | 2 | 3 hp | Not Rated | Not Rated | 2 hp | 32A | 40A | 208/240V AC | €76.91 | |
| 6GNP9 | 2 | 3 hp | Not Rated | Not Rated | 2 hp | 32A | 40A | 24V AC | €76.91 | |
| 6GNR0 | 2 | 7 1/2 hp | - | - | 5 hp | 63A | 75A | 24V AC | €130.06 | |
| 6GNR2 | 2 | 2 hp | Not Rated | Not Rated | 1 hp | 20A | 30A | 120V AC | €47.29 | |
| 6GNR6 | 2 | 3 hp | Not Rated | Not Rated | 2 hp | 25A | 35A | 120V AC | €52.93 | |
| 6GNR7 | 2 | 3 hp | Not Rated | Not Rated | 2 hp | 32A | 40A | 120V AC | €76.91 |
