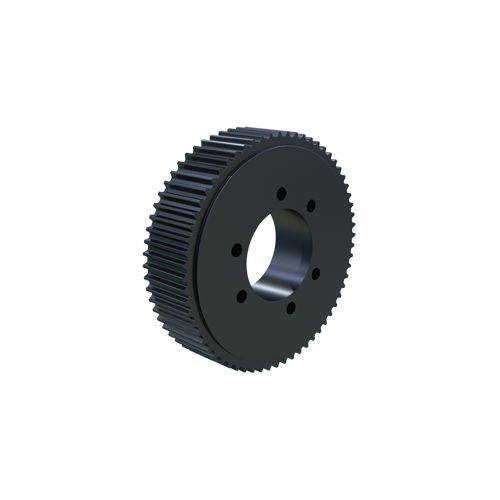

MARTIN SPROCKET W6414M65-F Sprocket, F Bushing, 4 Inch Max Bore, 64 Teeth, 11.229 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Mar 3
€1,228.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Diameter | 1" to 4" |
| Bore Type | High hp Bushed |
| Bushing Type | F |
| Face Width | 3.032" |
| Flange Dia. | 11 3/4" |
| Length | 3 5/8" |
| Material | Cast Iron |
| No. Of Grooves | 64 |
| No. Of Teeth | 64 |
| O.d. | 11.118" |
| Pitch | 14 mm |
| Pitch Dia. | 11.229" |
| Type | Solid Type CF-1 |
Shipping Info:
| Ship weight (kg) | 22.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Type | Face Width | Pitch | Type | Bushing Type | Flange Dia. | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W3814M42-SF | 6.667" | QD Bushed | 2.087" | 0.55118" | Solid Type DF-1 | SF | 7.16" | - | €625.78 | |
 |
W3614M65-3030 | 6.316" | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type MPBF-1 | 3030 | 6.81" | 0.032" | €795.22 | |
 |
W3814M65-3030 | 6.667" | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type MPBF-1 | 3030 | 7.16" | 0.032" | €753.91 | |
 |
W4014M65-3535 | - | Tapper Lock Bushed | 3.032" | 0.55118" | Solid Type CF-1 | 3535 | - | - | €784.91 | |
 |
W4014M90-3535 | - | Tapper Lock Bushed | 4.055" | 0.55118" | Solid Type KF-1 | 3535 | - | - | €932.14 | |
|
W4414M90-3535 | 7 18/25" | Tapper Lock Bushed | 4.055" | 0.55118" | Solid Type KF-1 | 3535 | 8.22" | - | €939.60 | |
 |
W4814M120-4040 | - | Bushed | 5.236" | 0.55118" | Solid Type KF-1 | 4040 | 8.937" | - | €1,430.34 |
