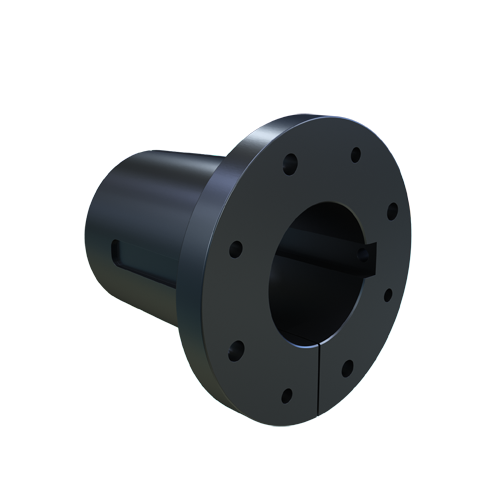

MARTIN SPROCKET W2 5 Bushing, 11.250 Inch Length Through Bore, 5 Inch Bore, Ductile Iron
5"
Get it by Tuesday, Aug 25
€3,219.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bushing |
| Bolt Circle Dia. | 10" |
| Bore Dia. | 5" |
| Cap Screw Size | 3/4"-10 x 3" |
| Flange Dia. | 12 1/2" |
| Flange Thickness | 1 7/16" |
| Key Way Size | 1 1/4" x 5/8" |
| Large End Barrel Dia. | 8 1/2" |
| Length | 11 1/4" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 4 |
| Set Screw Size | 1/2"-13 x 1/2" |
| Small End Barrel Dia. | 7.9141" |
| Suitable For Use With | MST Sprockets |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 58.5 |
| Country of Origin | US |
